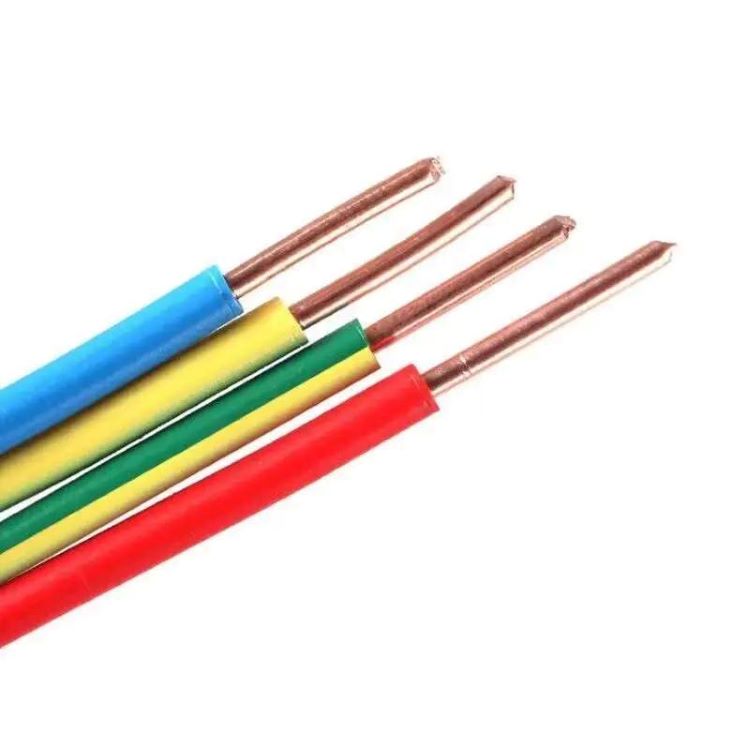

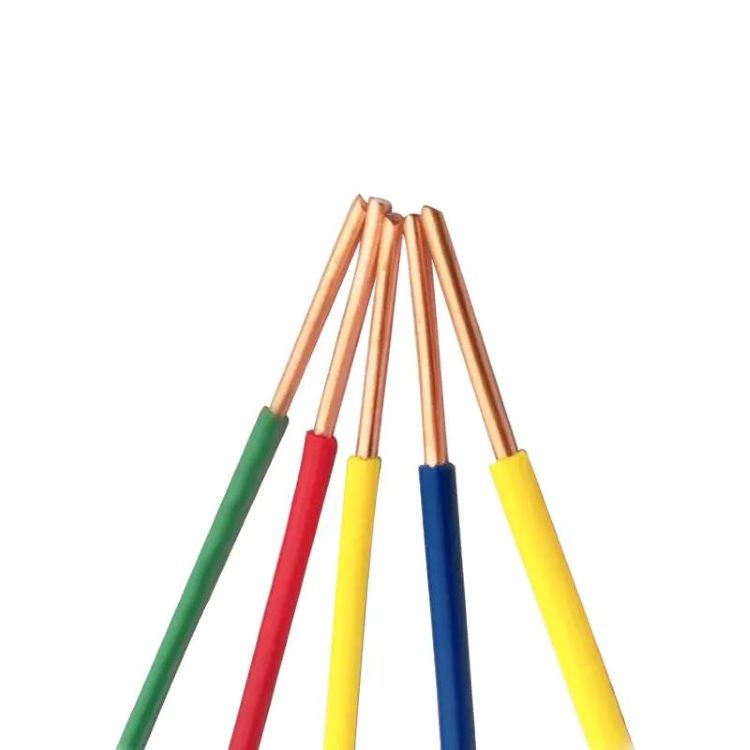

Overview
| Model NO. | H05V-V TH/BV | Application | Residential Wiring、Commercial Buildings、Industrial Use、Infrastructure Projects |
| Voltage | low Voltage Cable | Current | Power cable for construction |
| Insulation Material | PVC | Sheath Material | PVC |
| Material Shape | round | Wire Core Material | Red Copper Wire |
| Certification | ISO, CCC, CE, RoHS, VDE | Model | H05V-V TH/BV |
| Brand | ZhongYI | Voltage Type | 64/110kv |
| Company Name | ZHONGYI Cable Co., Ltd | Trademark | CANGZHOUHUIYOU |
| Transport Package | Iron Wood Shaft | Specification | 1.5mm²、2.5mm²、4mm²、6mm²、10mm² |
| Origin | HEBEI China | Single gross weight | 82.000 kg |
| Item Spec. | Nominal Cross Section mm² |
NO./Diameter Of Conductor mm |
Insulation Thicknese mm |
Conductor Resistance At 20°C≤Ω |
Max.Outer Diameter mm |
Ref.Weight kg/km |
| H05V-U | 0.5 | 1/0.8 | 0.6 | 36 | 2.4 | 8.44 |
| H05V-U | 1 | 1/1.13 | 0.6 | 18.1 | 2.8 | 13.85 |
| H07V-U | 1.5 | 1/1.38 | 0.7 | 12.1 | 3.3 | 20.2 |
| H07V-U | 2.5 | 1/1.78 | 0.8 | 7.41 | 3.9 | 31.9 |
| H07V-R | 2.5 | 7/0.68 | 0.8 | 7.41 | 4.2 | 34.89 |
| H07V-U | 4 | 1/2.25 | 0.8 | 4.61 | 4.4 | 46.98 |
| H07V-R | 4 | 7/0.85 | 0.8 | 4.61 | 4.8 | 50.2 |
| H07V-R | 10 | 7/1.35 | 1 | 1.83 | 6.8 | 118.61 |
| H07V-R | 25 | 7/2.14 | 1.2 | 0.727 | 9.8 | 280.51 |
| H07V-R | 35 | 7/2.52 | 1.2 | 0.524 | 11 | 378.97 |
| H07V-R | 240 | 61/2.23 | 2 | 0.0754 | 26.6 | 2570 |
Features
Conductor Material:High-purity oxygen-free copper (OFC) — ensures low resistivity and thermal stability
Insulation Properties :Resistant to acids, alkalis, oil, moisture, and mold; flame-retardant variants available
Temperature Rating Max: conductor temperature: 70°C; minimum installation temperature: 0°C
Bending Radius ≥4× outer diameter (for D < 25 mm); ≥6× outer diameter (for D ≥ 25 mm)
Application
Residential Wiring – Lighting circuits, socket outlets, and household appliances.
Commercial Buildings – Office buildings, shops, hotels, and indoor installations.
Industrial Use – Machinery wiring, control panels, and low-voltage distribution systems.
Infrastructure Projects – Street lighting, small-scale power distribution, and public facilities.
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Supper High Votaltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, WeldingCable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitivepricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
