Overview
| Model NO. | DJYP2VP2-22，Individual & Overall Copper Tape Screened | Application | Direct Burial Installations,Heavy Industrial Automation,Petrochemical Industries |
| Voltage | Low Voltage | Conductor | Copper |
| Insulation Material | PE | Jacket | PVC |
| Material Shape | Round | Temperature |
-20°C~70°C
|
| Certification | ISO, CCC, CE, RoHS, VDE | Shielding | Copper Tape |
| Brand | ZhongYI | Voltage Type | 300/500V |
| Armor | Double Steel Tape Armored | CORE | Multi-pair |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 0.5 – 2.5 mm² |
| Origin | HEBEI China | Color | Black (or as requested) |

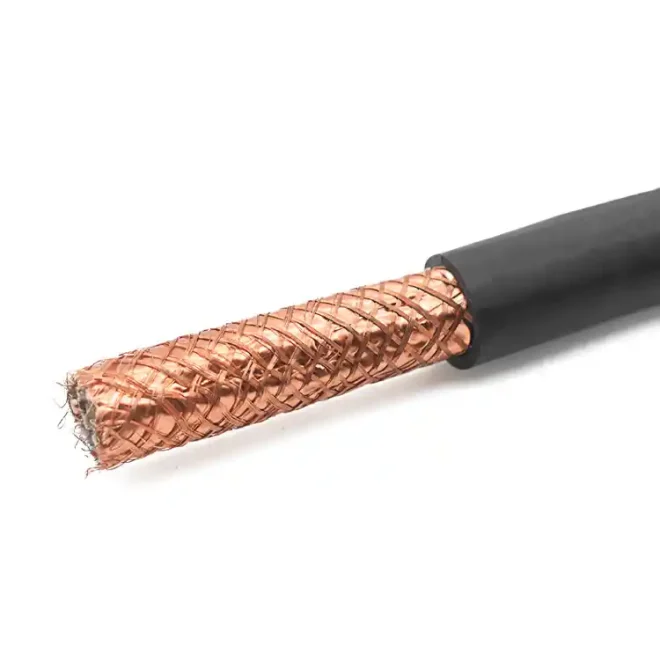

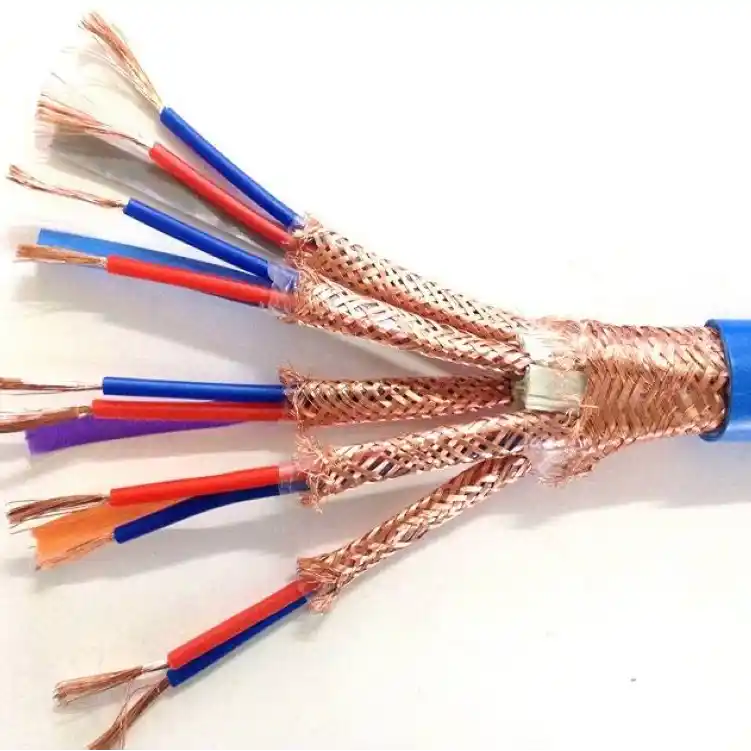

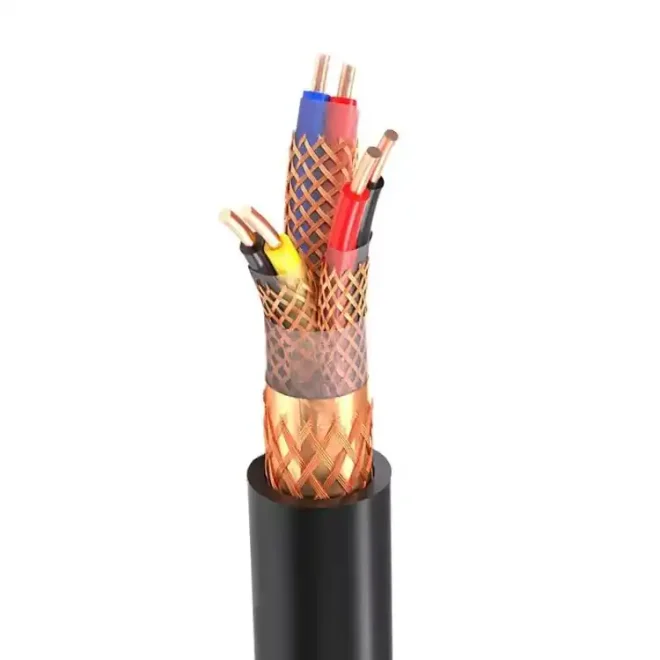

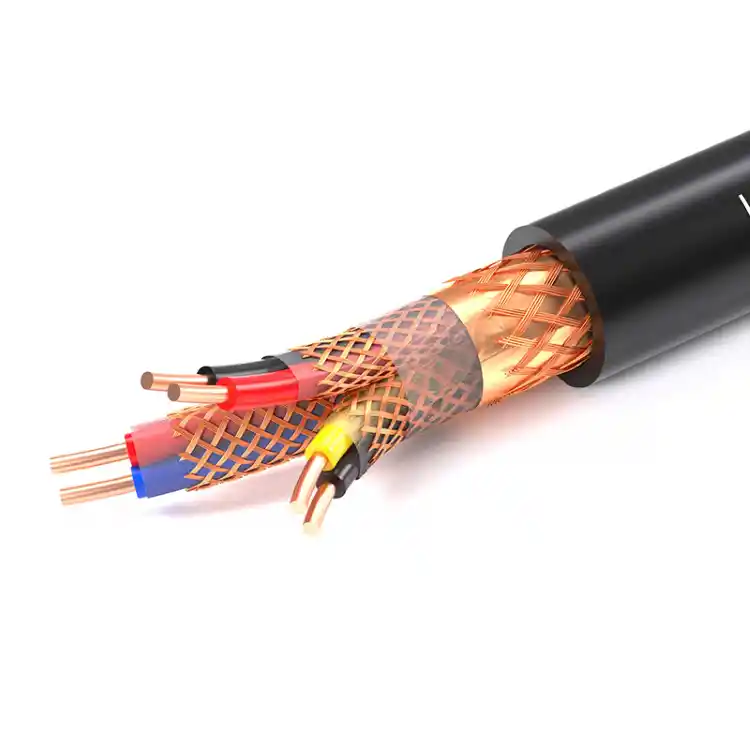

Individual & Overall Copper Tape Screened DJYP2VP2-22 Cable Core Technical Specifications & Data Sheet
| Specification (No. of Pairs × Cross Section) | Conductor Structure (No./mm) | Screening / Shield Type | Armoring Material | Nominal Outer Diameter (mm) | Voltage Rating (U0/U) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 2 × 2 × 0.75 mm² | 7/0.37 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 17.5 | 300/500 V | ~ 460 |
| 4 × 2 × 0.75 mm² | 7/0.37 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 19.8 | 300/500 V | ~ 610 |
| 7 × 2 × 0.75 mm² | 7/0.37 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 23.2 | 300/500 V | ~ 850 |
| 2 × 2 × 1.0 mm² | 7/0.43 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 18.8 | 300/500 V | ~ 520 |
| 4 × 2 × 1.0 mm² | 7/0.43 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 21.2 | 300/500 V | ~ 710 |
| 2 × 2 × 1.5 mm² | 7/0.52 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 20.5 | 300/500 V | ~ 620 |
| 4 × 2 × 1.5 mm² | 7/0.52 (Class 2) | Individual & Overall Copper Tape | Double Steel Tape (STA) | ~ 23.6 | 300/500 V | ~ 880 |
Features
Individual & Overall Copper Tape Screened DJYP2VP2-22 Cable serial with Closely similar to those Cable Comparison Table
| Model / Cable Code | International Standard Name | Conductor Structure | Individual Shield | Overall Shield | Mechanical Protection | Primary Application |
|---|---|---|---|---|---|---|
| DJYPVP | Individual & Overall Screened Instrumentation Cable | Class 2 (Stranded Copper) | Yes (Copper Braid) | Yes (Copper Braid) | None | DCS/PLC signal control loops with high cross-talk risks. |
| DJYPVRP | Flexible Individual & Overall Screened Cable | Class 5 (Flexible Wire) | Yes (Copper Braid) | Yes (Copper Braid) | None | Frequently moved circuits, cable tracks, or tight spaces. |
| DJYP2VP2-22 | Armored Individual & Overall Copper Tape Screened Cable | Class 2 (Stranded Copper) | Yes (Copper Tape) | Yes (Copper Tape) | Steel Tape Armored (STA) | Direct underground burial under extreme EMI and mechanical load. |
| DJYPVP22 | Armored Individual & Overall Screened Cable | Class 2 (Stranded Copper) | Yes (Copper Braid) | Yes (Copper Braid) | Steel Tape Armored (STA) | Direct underground burial with risks of crushing and mechanical impacts. |
| DJYVP | Overall Screened Instrumentation Cable | Class 2 (Stranded Copper) | None | Yes (Copper Braid) | None | General computer and automation systems under mild external EMI environments. |
| DJYVRP | Flexible Overall Screened Instrumentation Cable | Class 5 (Flexible Wire) | None | Yes (Copper Braid) | None | Internal wiring of centralized control cabinets and server racks. |
| DJYVP22 | Armored Overall Screened Instrumentation Cable | Class 2 (Stranded Copper) | None | Yes (Copper Braid) | Steel Tape Armored (STA) | Outdoor cable trenches or areas requiring solid rodent and crush resistance. |
Copper Tape Shielding (P2): Individual and overall copper tape wrapping provides 100% electrostatic shielding coverage and excellent anti-EMI performance.
Heavy mechanical Protection (22): Double steel tape armoring (STA) protects internal twisted pairs against extreme crushing forces and rodent bites.
Crosstalk Elimination: Precision twisted pairs minimize signal interference between channels, ensuring reliable industrial data logging.
Robust Outer Jacket: Reinforced flame-retardant PVC sheath stands up to severe soil corrosion, moisture, and chemical exposure.
Low Signal Attenuation: Fine stranded or solid pure copper cores deliver premium conductivity for low-voltage sensor telemetry.
Application
Direct Burial Installations: Laying power-plant and refinery control lines directly into soil trenches without protective conduits.
Heavy Industrial Automation: Linking automated PLCs and computer systems in high-risk zones like steel mills, mines, and foundries.
Petrochemical Industries: Connecting control nodes, safety telemetries, and distributed control systems (DCS) near high-voltage interference.
Outdoor Cable Trays: Running long-distance analog signal highways across outdoor industrial yards and oil tank farms.
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Super High Voltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, Welding Cable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitive pricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
