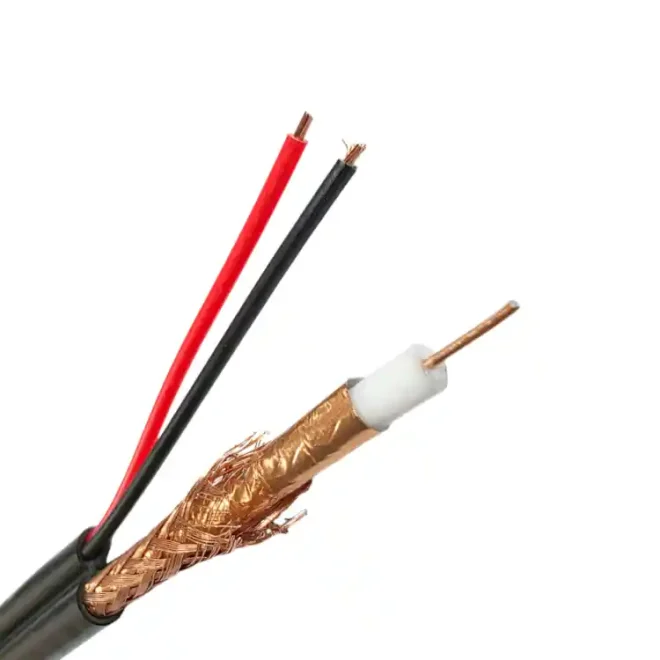

Overview
| Model NO. | RG6 Coaxial Cable, 75 Ohm Coaxial Cable，SYWV75-5 | Application | CCTV Surveillance,CATV & Satellite TV,Broadband Networks,RF Signal Transmission |
| Voltage | Low Voltage | Conductor | Bare Copper |
| Insulation Material | PE | Jacket | PVC |
| Characteristic Impedance | 75 ± 3 Ω | Temperature |
-25°C~70°C
|
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Solid |
| Brand | ZhongYI | Voltage Type | 2000V AC |
| Company Name | ZHONGYI Cable Co., Ltd | Structure | Coaxial |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 18 AWG |
| Origin | HEBEI China | Shielding | Aluminum Foil + Braid |
RG6 Coaxial Cable Core Technical Specifications & Data Sheet
| Model / Core Material | Dimensional Structure (Inner Cond. / Insulation / Jacket) | Shielding & Braid Coverage | Electrical Properties (Impedance / Cap.) | Max Attenuation (dB/100m @ 20℃) | Min. Bend Radius | Approx. Weight |
|---|---|---|---|---|---|---|
| SYWV 75-5 (BC) Premium Grade |
• Center: 1.00mm Solid BC • Insulation: 4.80mm Gas-Injected Foamed PE • Outer OD: 6.80mm PVC |
• Layer 1: Bonded AL Foil • Layer 2: 60% Al-Magnesium Wire Braid |
• Impedance: 75 ± 3 Ω • Capacitance: 52 ± 2 pF/m • Velocity: 82% |
• 50 MHz: ≤ 4.70 • 200 MHz: ≤ 9.10 • 550 MHz: ≤ 15.20 • 1000 MHz: ≤ 21.10 |
68 mm (10 × OD) |
46 kg/km |
| SYWV 75-5 (CCS) Standard Grade |
• Center: 1.02mm Solid CCS • Insulation: 4.80mm Gas-Injected Foamed PE • Outer OD: 6.80mm PVC |
• Layer 1: Bonded AL Foil • Layer 2: 60% Al-Magnesium Wire Braid |
• Impedance: 75 ± 3 Ω • Capacitance: 53 ± 2 pF/m • Velocity: 82% |
• 50 MHz: ≤ 4.90 • 200 MHz: ≤ 9.50 • 550 MHz: ≤ 16.00 • 1000 MHz: ≤ 22.30 |
68 mm (10 × OD) |
43 kg/km |
Features
RG6 Coaxial Cable serial with Closely similar to those Cable Comparison Table
| Model / Type | Shielding Structure (Shield Layers) | Jacket Material & Protection | Impedance & Velocity | Anti-EMI Performance | Primary Application | Chinese Equivalent Model |
|---|---|---|---|---|---|---|
| RG6 Dual-Shield | Bonded AL Foil + 60% Al-Mag Braid (2 Layers) | Standard Flame-Retardant PVC | 75 ± 3 Ω 82% VoP |
Standard (Good for general environments) |
Indoor CATV residential wiring and basic analog CCTV setups. | SYWV 75-5 <2P> |
| RG6 Quad-Shield | AL Foil + Braid + AL Foil + Braid (4 Layers) | Premium High-Flex PVC | 75 ± 3 Ω 82% VoP |
Maximum (Defeats severe high-frequency EMI) |
High-definition Satellite TV, digital broadband networks, and dense server rack spaces. | SYWV 75-5 <4P> |
| RG6 Direct Burial | AL Foil + High-Density Braid + Moisture-Proof Gel Injection | Heavy-Duty Waterproof PE Sheath | 75 ± 3 Ω 82% VoP |
High (Moisture resistant) |
Outdoor underground trenches, soil burial without conduits, and wet conduits. | SYWV 75-5+Flooding Compound |
| RG6 Messenger | AL Foil + Wire Braid (Standard or Quad) | UV-Resistant PVC + Integrated Steel Messenger Wire | 75 ± 3 Ω 82% VoP |
High (UV protected) |
Aerial (overhead) cable drops between poles, outdoor drop lines, and long spans. | SYWV 75-5+Messenger Wire |
75Ω Characteristic Impedance: Tailored perfectly for high-frequency video and RF signal transmissions to prevent ghosting or signal reflection.
Physical Foamed PE Insulation: Superior foaming technology ensures ultra-low attenuation and a stable dielectric constant over long runs.
Double/Quad Shielding: Aluminum foil combined with high-density wire braiding provides maximum defense against EMI/RFI interference.
Low Signal Loss: Pure solid copper or copper-clad steel (CCS) center conductor ensures fast signal velocity of propagation.
Weatherproof Durability: Wrapped in a flame-retardant, UV-resistant PVC jacket, making it suitable for both indoor and outdoor cabling.
Application
CCTV Surveillance: Connecting analog or digital security cameras to DVR monitors in commercial buildings.
CATV & Satellite TV: Delivering high-definition television signals from satellite dishes or cable providers to receivers.
Broadband Networks: High-speed internet data distribution via cable modems in residential infrastructures.
RF Signal Transmission: Linking radio frequency equipment, antennas, and wireless communication nodes.
Certification
Factory
FAQ
1. What is the explicit advantage of using Oxygen-Free Copper (OFC) in this RG6 cable?
Core Technical Advantage:
Our SYWV75-5 RG6 cable utilizes 99.99% pure Oxygen-Free Copper (OFC) as the center conductor. Compared to cheaper Copper Clad Steel (CCS) alternatives, a solid OFC conductor offers significantly lower electrical resistance and minimal attenuation. This ensures crystal-clear, long-distance HD video signal transmission for analog/digital CCTV surveillance and CATV networks without signal ghosting.
2. Why is a Quad-Shield design critical for industrial CCTV and CATV wire setups?
Anti-Interference Defense:
Industrial environments are heavily congested with electromagnetic interference (EMI) and radio frequency interference (RFI). Our Quad-Shield structure combines two layers of bonded aluminum foil and two layers of high-density aluminum wire braiding. This multi-layered defense provides up to 100% shielding coverage, preventing high-frequency noise from corrupting your 75 Ohm video feeds.
3. What does 'SYWV' stand for under standard cable nomenclature?
Standard Nomenclature Breakdown:
Under China’s rigorous manufacturing standards, the designation breaks down physically: ‘S’ represents Coaxial RF Cable; ‘Y’ signifies Polyethylene (PE) material; ‘W’ stands for Physical/Gas-injected Foamed PE Insulation; and ‘V’ stands for the PVC Outer Protective Jacket. The ’75-5′ indicates a 75 Ohm characteristic impedance paired with a approximate 5mm dielectric insulation diameter.
4. Does ZHONGYI CABLE provide factory test reports and customization for outdoor direct burial?
B2B Factory Support & Customization:
Yes. As a dedicated B2B cable manufacturer with 30 years of industrial expertise, every batch of SYWV75-5/RG6 cable comes with comprehensive Sweep Test and Factory Routine Test Reports. For heavy-duty outdoor deployments, we can customize the outer protective layer with weather-resistant Black PE or add an integrated steel messenger wire for aerial suspension.
5. What is the standard packaging and lead time for wholesale RG6 coaxial wire?
Commercial Supply Chain Logistics:
Our standard export packaging consists of 100-meter/200-meter easy-pull coils or 500-meter sturdy wooden drums to guarantee kink-free installation. For standard specifications, we maintain stable inventory for 2-3 day rapid shipping. Custom branding, customized braiding density, or large mass production bulk orders typically require a lead time of 7 to 25 days.
