Overview
| Nominal cross-sectional area (mm²) | Common AWG | Conductor structure (No./single wire diameter mm) | Nominal sheath thickness (mm) | Average outer diameter (mm) | Max DC resistance of conduclor at 20 Ω/km |
Approx.weight kg/km |
| 1.5 | 16 | 30/0.25 | 0.8 | 5.1 | 13.7 | 37.4 |
| 2.5 | 14 | 51/0.25 | 0.8 | 5.18 | 8.21 | 49 |
| 4 | 12 | 58/0.40 | 0.8 | 6.2 | 5.09 | 67.4 |
| 6 | 10 | 312/0.20 | 0.8 | 6.53 | 3.39 | 91.7 |
| 10 | 8 | 480/0.20 | 0.8 | 6.8 | 195 | 142.6 |

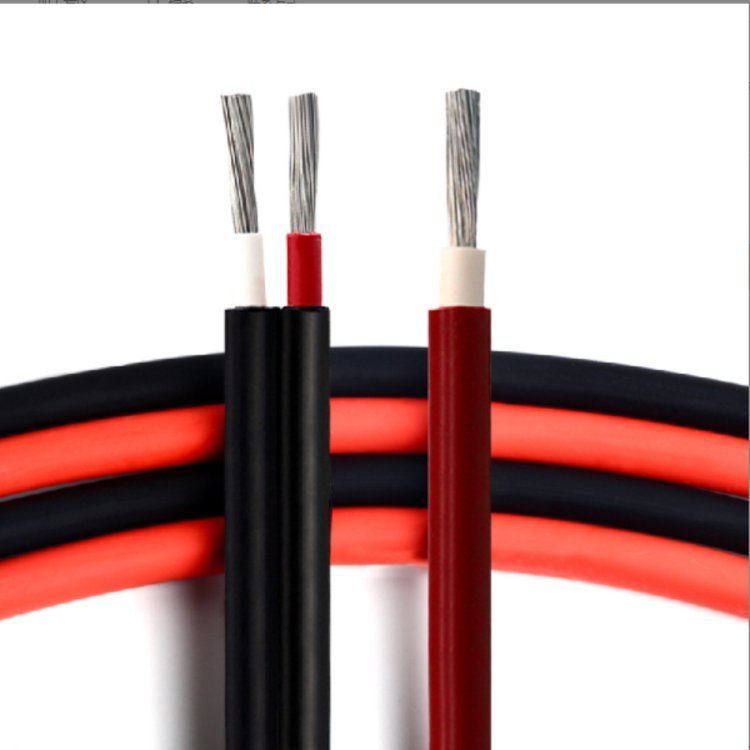

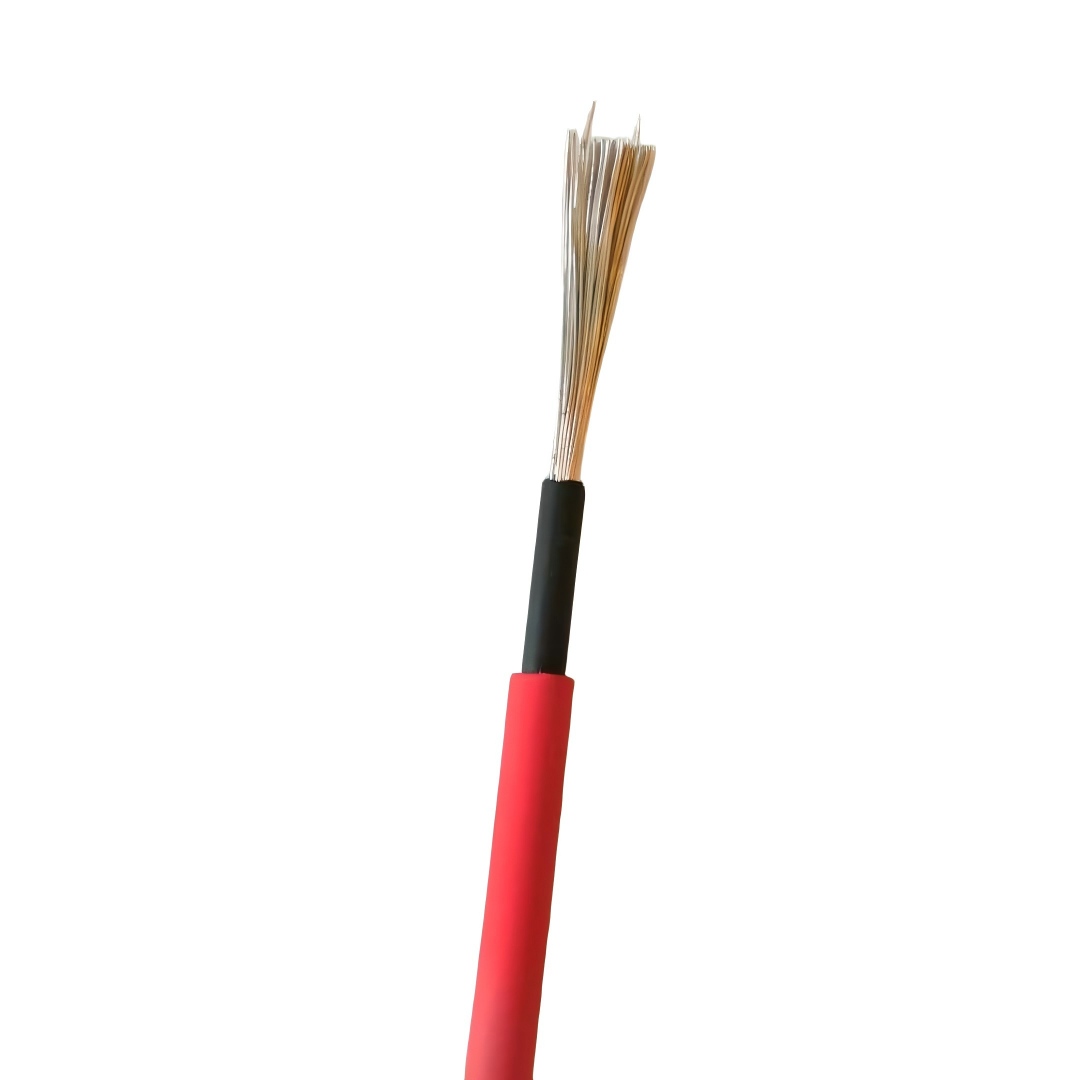

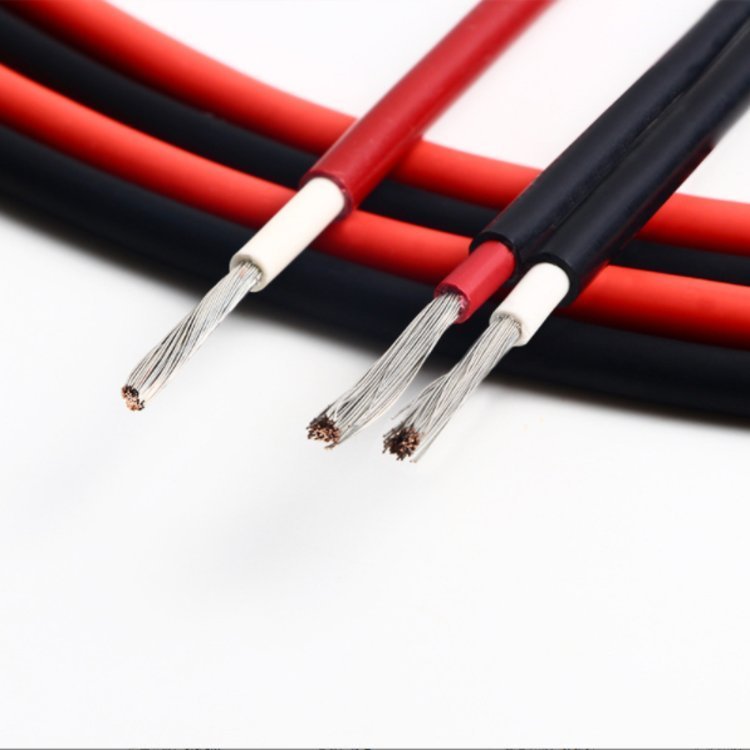

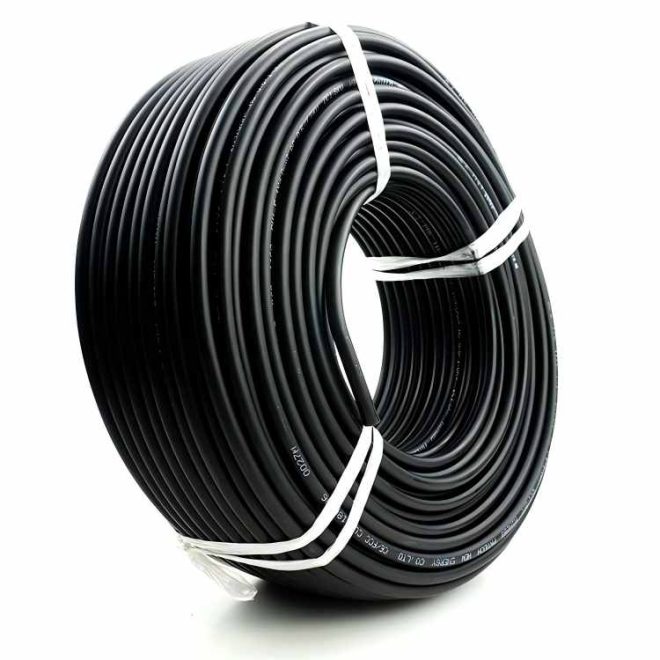

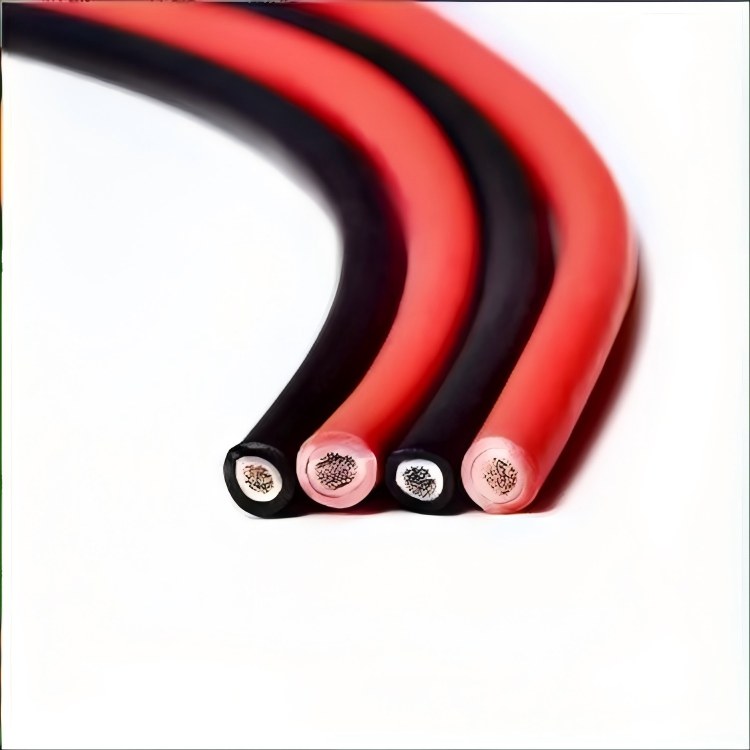

Product Structure
Conductor: Tinned copper multi-strand wire, conforming to DIN VDE 0295 and IEC 60228 CLASS 5 standards
Inner Sheath: Cross-linked polyolefin UL4703
Sheath Color: Black/Black, Black/Blue, Red/Red, Blue/Black, Black/Red, Red/Black, Blue/Blue, others available upon request
Outer Sheath: Cross-linked polyolefin UL4703
Sheath Color: Black/Black, Black/Blue, Red/Red, Blue/Black, Black/Red, Red/Black, Blue/Blue, others available upon request
Technical Parameters
Rated Voltage: 0.6/1KV
Test Voltage: 6500V
Minimum Bending Radius: Mobile Installation: 3*D
Ambient Temperature: Up to +90℃ to +120℃
Maximum Cable Temperature: -30℃ to +120℃
Installation Temperature Range: -45℃ to +120℃
Fixed Installation Temperature: +250℃
Short Circuit Test: Hydrochloric acid compliant, conforms to EN50627-2-1
Halogen-Free: Fluorine-free, conforms to EN60684-2
Flame Retardant Test: Flame retardant and self-extinguishing, conforms to IEC60332-1
Characteristics and Compliance
Characteristics: High heat resistance, flame retardancy, halogen-free, weather resistance
Typical Applications:

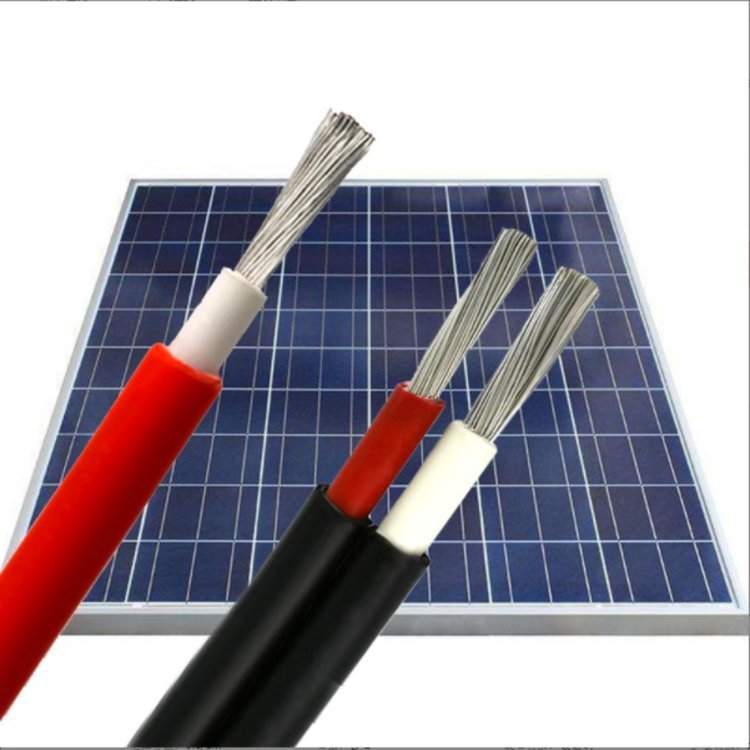

This cable insulation material features improved flame retardant properties and temperature range, making it particularly suitable as a connection cable for solar energy installations. It can be used outdoors in various climatic conditions and is also adaptable to dry and humid indoor working environments.
