Overview
| Model NO. | H05V-K/THHN | Application | building wire for placing into trunking and conduit |
| Voltage | low Voltage Cable | Conductor | Pure Copper |
| Insulation Material | PVC | Sheath Material | PVC |
| Material Shape | round | Wire Core Material | Red Copper Wire |
| Certification | ISO, CCC, CE, RoHS, VDE | Model | H05V-K |
| Brand | ZhongYI | Voltage Type | 450/750v |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 1 |
| Transport Package | Iron Wood Shaft | Specification | 0.5-240mm² |
| Origin | HEBEI China | Single gross weight | 2.000 kg |
| Item Spec. | Nominal Cross Section mm² |
NO./Diameter Of Conductor mm |
Insulation Thickness mm |
Conductor Resistance At 20°C≤Ω |
Max.Outer Diameter mm |
Ref.Weight kg/km |
| H05V-K | 0.5 | 1/0.8 | 0.6 | 36 | 2.4 | 8.44 |
| H05V-K | 1 | 1/1.13 | 0.6 | 18.1 | 2.8 | 13.85 |
| H05V-K | 1.5 | 1/1.38 | 0.7 | 12.1 | 3.3 | 20.2 |
| H05V-K | 2.5 | 1/1.78 | 0.8 | 7.41 | 3.9 | 31.9 |
| H05V-K | 2.5 | 7/0.68 | 0.8 | 7.41 | 4.2 | 34.89 |
| H05V-K | 4 | 1/2.25 | 0.8 | 4.61 | 4.4 | 46.98 |
| H05V-K | 4 | 7/0.85 | 0.8 | 4.61 | 4.8 | 50.2 |
| H05V-K | 10 | 7/1.35 | 1 | 1.83 | 6.8 | 118.61 |
| H05V-K | 25 | 7/2.14 | 1.2 | 0.727 | 9.8 | 280.51 |
| H05V-K | 35 | 7/2.52 | 1.2 | 0.524 | 11 | 378.97 |
| H05V-K | 240 | 61/2.23 | 2 | 0.0754 | 26.6 | 2570 |
Features

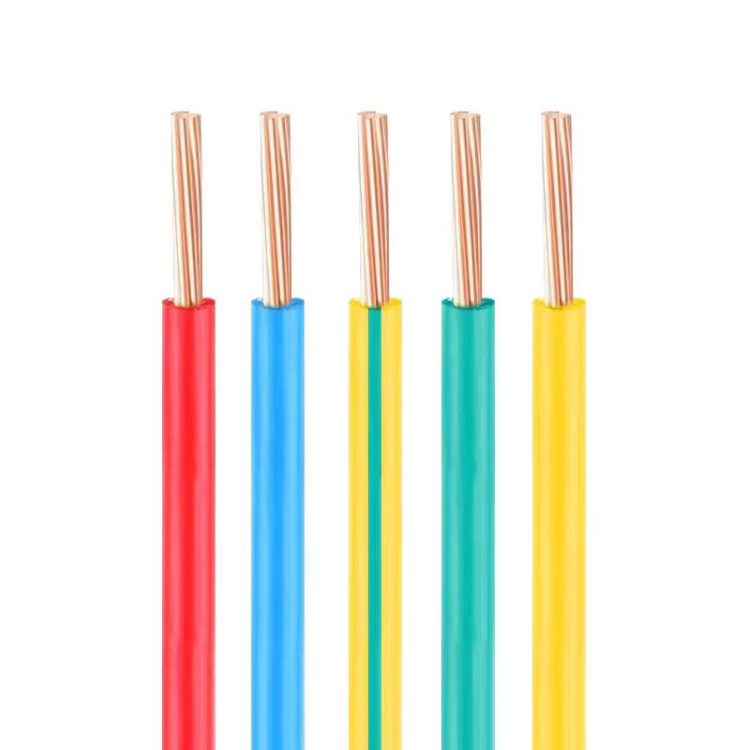

Full Name: Flexible Copper Core Polyvinyl Chloride (PVC) Insulated Cable H05V-K and BVR Cable

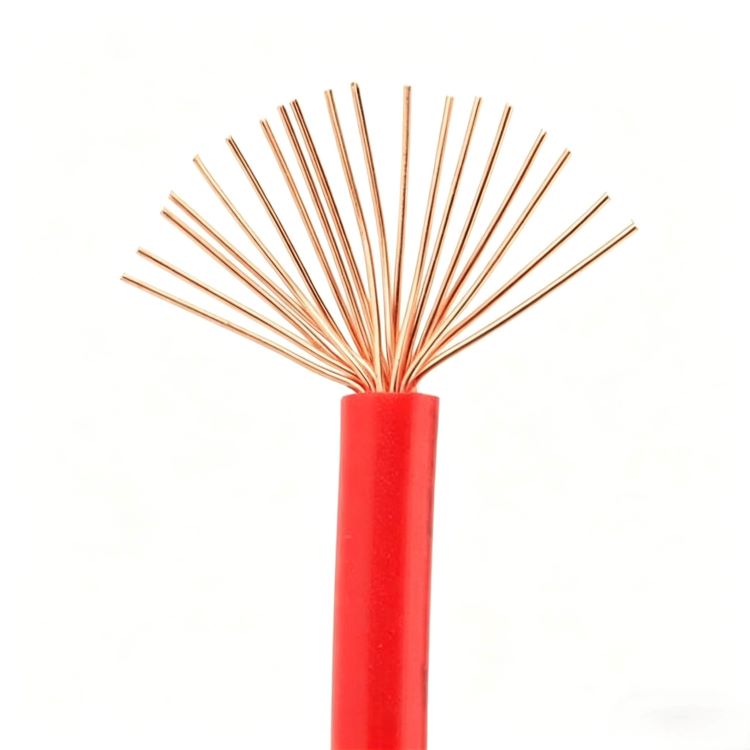

Extreme Flexibility: Class 5 fine-stranded copper conductor allows for easy handling in confined spaces.
Space Saving: Thinner insulation wall compared to H07v-k, perfect for high-density wiring in security control boxes.
High Purity Copper: 99.9% Oxygen-Free Copper (OFC) for excellent conductivity and low heat generation.
Self-Extinguishing: PVC insulation meets IEC 60332-1 flame retardancy standards.
Application
Household Appliances: Internal wiring in washing machines, refrigerators, vacuum cleaners, and coffee makers
Industrial Control Systems: Wiring inside PLC cabinets, relay panels wiring, and control terminals
Lighting Fixtures: Connection wires for LED modules, ceiling lights, and track lighting (within conduit or junction boxes)
Industrial Wire: Fixed Industrial flexible cable in dry, protected environments — e.g., behind drywall, in cable trays, or within distribution boards
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Supper High Votaltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, WeldingCable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitivepricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
