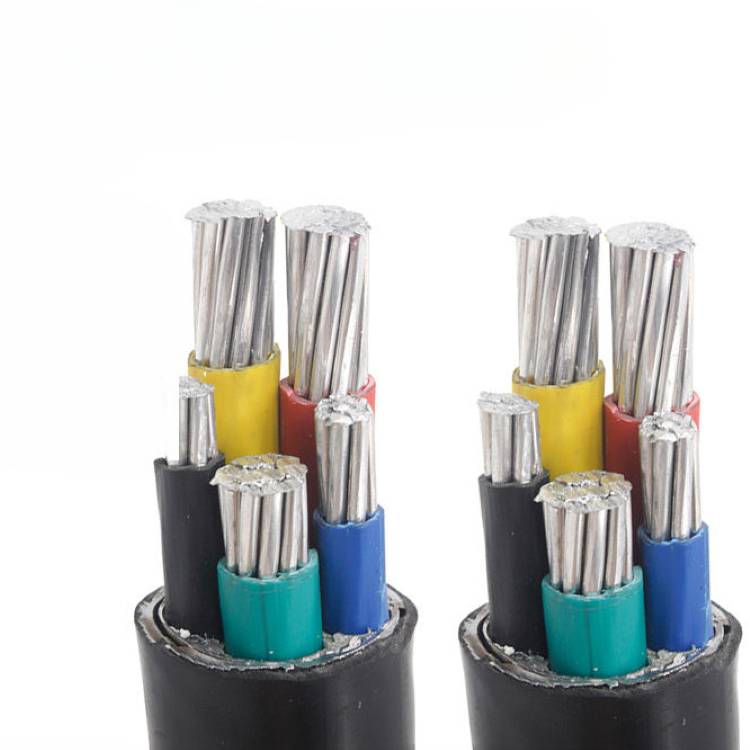

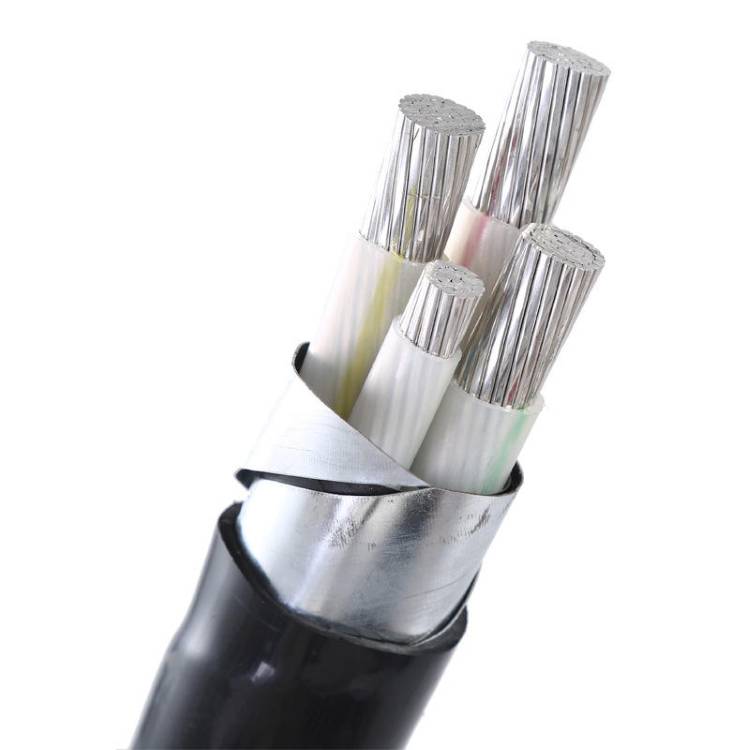

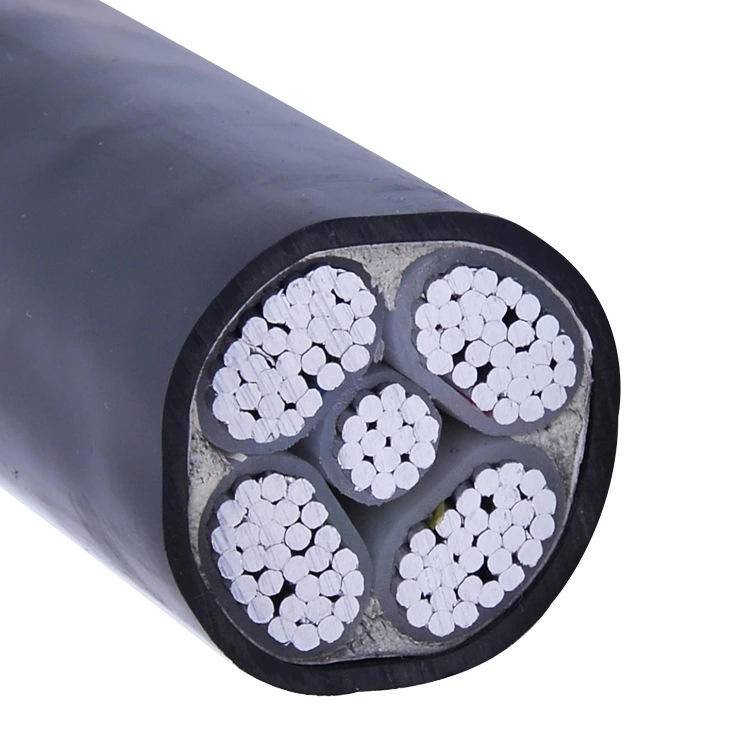

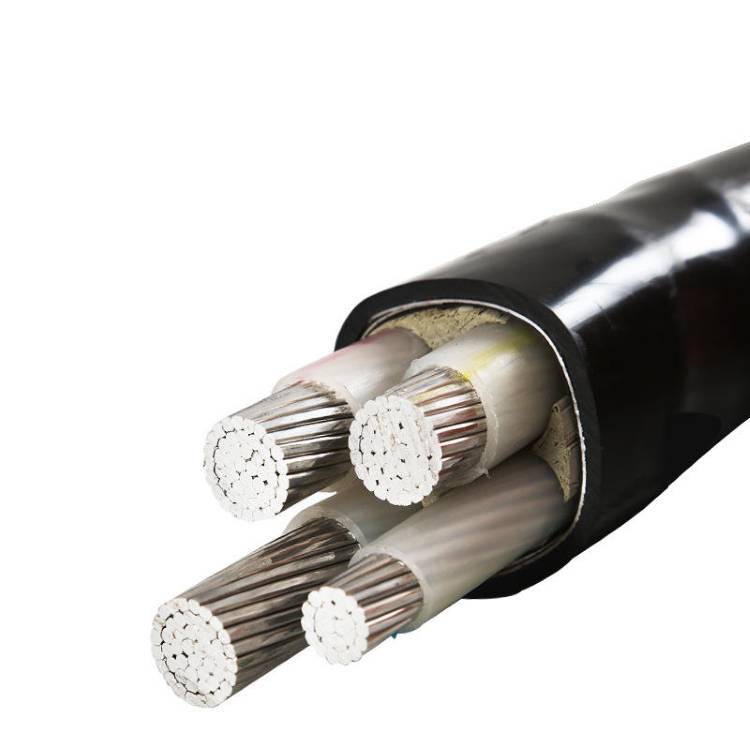

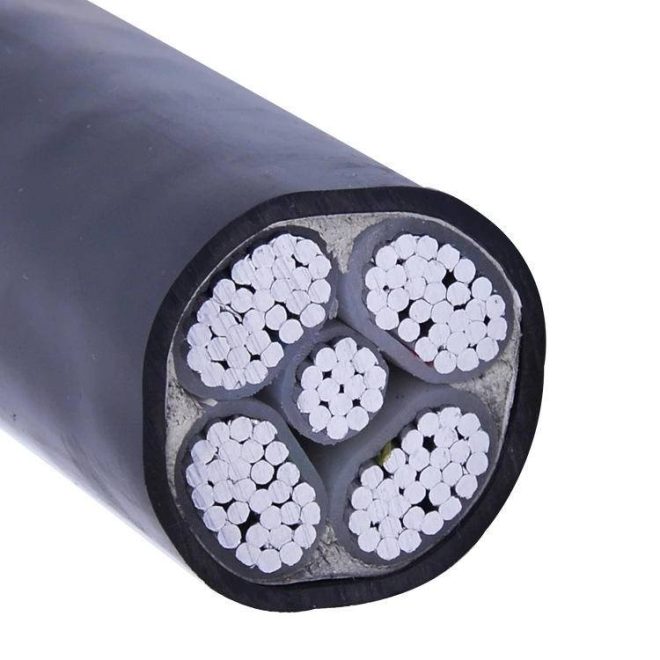

Overview
| Model NO. | YJLV | Application | Solar PV Infrastructure,Industrial Plants & Yards,residential expansion loops,Construction Power Station Wiring |
| Voltage | Low/Medium Voltage | Conductor | Aluminum |
| Insulation Material | XLPE | Jacket | PVC |
| Material Shape | Round | Temperature |
0°C~90°C
|
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Solid |
| Brand | ZhongYI | Voltage Type | 0.6/1kv-26/35kv |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 1,2,3,4,5，3+1,3+2,4+1 Tailor-made |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 10-630mm² |
| Origin | HEBEI China | Color | black |
YJLV Cable Core Technical Specifications & Data Sheet
| No. / Cross Section (mm²) | Conductor Diameter (mm) | Average Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Rated Voltage (U₀/U) | Ref. Outer Diameter (mm) | Approx. Weight (kg/km) |
|---|---|---|---|---|---|---|
| 1×1.5 | 1.38 | 0.7 | 1.4 | 0.6/1 kV | 5.58 | 34.38 |
| 4×35+1×16 | 6.7 | 0.7 | 1.8 | 0.6/1 kV | 25.79 | 734.27 |
| 1×1.5 | 1.38 | 2.0 | 1.4 | 1.8/3 kV | 8.54 | 96.41 |
| 3×25+2×16 | 5.7 | 2.0 | 1.9 | 1.8/3 kV | 29.8 | 891.51 |
| 1×25 | 5.7 | 4.5 | 1.7 | 8.7/15 kV | 21.94 | 505.29 |
| 3×95 | 11.0 | 4.5 | 2.9 | 8.7/15 kV | 57.09 | 2991.12 |
| 1×50 | 7.8 | 10.5 | 26/35 kV | 38.32 | 1375.06 | |
| 3×120 | 12.3 | 10.5 | 3.8 | 26/35 kV | 89.54 | 6413.47 |
Features
YJLV Cable is a highly cost-effective, low-to-medium voltage power cable engineered for reliable electricity transmission and distribution systems. Featuring lightweight, high-purity aluminum conductors, premium high-dielectric XLPE (Cross-linked Polyethylene) insulation.
YJLV cable vs YJLV22 vs YJLV32 Power Cable Core Comparison Table
| Technical Feature | YJLV Cable (Standard Type) | YJLV22 Cable (Steel Tape Armored) | YJLV32 Cable (Steel Wire Armored) |
|---|---|---|---|
| Full Name | XLPE Insulated PVC Sheathed Aluminum Power Cable | XLPE Insulated Steel Tape Armored PVC Sheathed Aluminum Cable | XLPE Insulated Steel Wire Armored PVC Sheathed Aluminum Cable |
| Conductor Material | High-purity EC-Grade Aluminum / 8000 Series Aluminum Alloy (Lightweight & Cost-effective) | ||
| Armoring Material | None (Unarmored) | STA (Double Steel Tape Armor) | SWA (Galvanized Steel Wire Armor) |
| Crush & Radial Resistance | Low (Requires extra conduit/pipe protection under soil pressure) | Excellent (Safely resists heavy backfill load and shifting soil crushing) | Moderate to High (Good resistance against lateral impacts and external rocks) |
| Tensile Strength (Pull Force) | Standard (Cannot handle vertical or long-distance pulling tension) | Low (Steel armor tapes may shift or unwrap under longitudinal force) | Superior (Withstands extreme vertical hanging tension and structural pulls) |
| Bending Radius & Flex | Smallest (Easiest to route in tight indoor trays and conduits) | Larger (Relatively stiff due to overlapping continuous metal armor) | Largest (Stiftest structure due to full perimeter galvanized steel wires) |
| Primary Installation | Indoor cable trays, concrete ducts, aerial brackets, solar PV inverter frames | Direct underground burial, utility soil trenches, public municipal grids | Vertical shafts, deep mining wells, high-drop utility towers, river crossings |
Unmatched Cost Efficiency: Delivers equivalent current-carrying performance at only a fraction of the raw material weight and procurement cost of traditional copper cables.
High Thermal Limits: The XLPE insulation allows the aluminum conductor to operate continuously at normal load temperatures up to 90°C and survive short-circuit anomalies up to 250°C.
Lightweight & Easy Installation: The lower density of aluminum makes the cable significantly lighter, reducing labor costs and tension stress during long-distance grid layout.
Excellent Corrosion Resistance: The heavy-duty PVC jacket provides tightly sealed moisture encapsulation and superb defense against industrial acids, alkalis, and atmospheric weathering.
Application
Solar PV Infrastructure: Ideal for main AC collection grids routing power between field-mounted inverters and step-up substations in commercial solar farms.
Industrial Plants & Yards: Power supply distribution networks running through energy-intensive manufacturing factories, logistics hubs, and processing fields.
Urban & Suburban Power Grids: Budget-optimized underground cable ducts, utility trenches, and indoor power trays for residential expansion loops.
Commercial Building Risers: Serves as economic main vertical feeders and overhead horizontal trays inside distribution complexes.
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Super High Voltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, Welding Cable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitive pricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
