Overview
| Model NO. | JKLGY/JKLGYJ | Application | Urban Power Grids、Long-span Crossings、Coastal & Harsh Areas |
| Voltage | Medium Voltage | Conductor | Aluminum |
| Insulation Material | XLPE PE PVC | Jacket | XLPE |
| Material Shape | Round/Flat | Temperature | 90°C |
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Solid |
| Brand | ZhongYI | Voltage Type | 0.6/1 kV |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | Single |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 4*185 mm² + 1*95 mm² |
| Origin | HEBEI China | Color | Black |
| Sectional area mm | Voltage | Reference conductor diameter (mm) | Average insulation thickness (mm) | steel core structure | Average insulation thickness (mm) | Ref. Outer diameter (MM) | Approx.weight kg/km |
|---|---|---|---|---|---|---|---|
| 50/8 | 1 | 9.0±0.3 | 1.4±0.1 | 7×1.2 | 1.4±0.1 | 24.5 | 385 |
| 10 | 9.0±0.3 | 3.4±0.1 | 7×1.2 | 1.4±0.1 | 29.5 | 560 | |
| 70/10 | 1 | 10.7±0.3 | 1.4±0.1 | 7×1.5 | 1.5±0.1 | 26.8 | 545 |
| 10 | 10.7±0.3 | 3.4±0.1 | 7×1.5 | 1.5±0.1 | 32.8 | 760 | |
| 95/15 | 1 | 12.5±0.3 | 1.6±0.1 | 7×1.8 | 1.6±0.1 | 30.2 | 735 |
| 10 | 12.5±0.3 | 3.4±0.1 | 7×1.8 | 1.6±0.1 | 36.2 | 1010 | |
| 120/20 | 1 | 14.0±0.3 | 1.6±0.1 | 7×2.0 | 1.7±0.1 | 32.8 | 930 |
| 10 | 14.0±0.3 | 3.4±0.1 | 7×2.0 | 1.7±0.1 | 38.8 | 1235 | |
| 150/25 | 1 | 15.8±0.3 | 1.8±0.1 | 7×2.2 | 1.8±0.1 | 35.8 | 1180 |
| 10 | 15.8±0.3 | 3.4±0.1 | 7×2.2 | 1.8±0.1 | 41.8 | 1520 | |
| 185/30 | 1 | 17.5±0.3 | 1.8±0.1 | 7×2.4 | 1.9±0.1 | 38.2 | 1450 |
| 10 | 17.5±0.3 | 3.4±0.1 | 7×2.4 | 1.9±0.1 | 44.2 | 1840 | |
| 240/40 | 1 | 20.0±0.3 | 2.0±0.1 | 7×2.8 | 2.0±0.1 | 42.5 | 1950 |
| 10 | 20.0±0.3 | 3.4±0.1 | 7×2.8 | 2.0±0.1 | 48.5 | 2400 |
Features

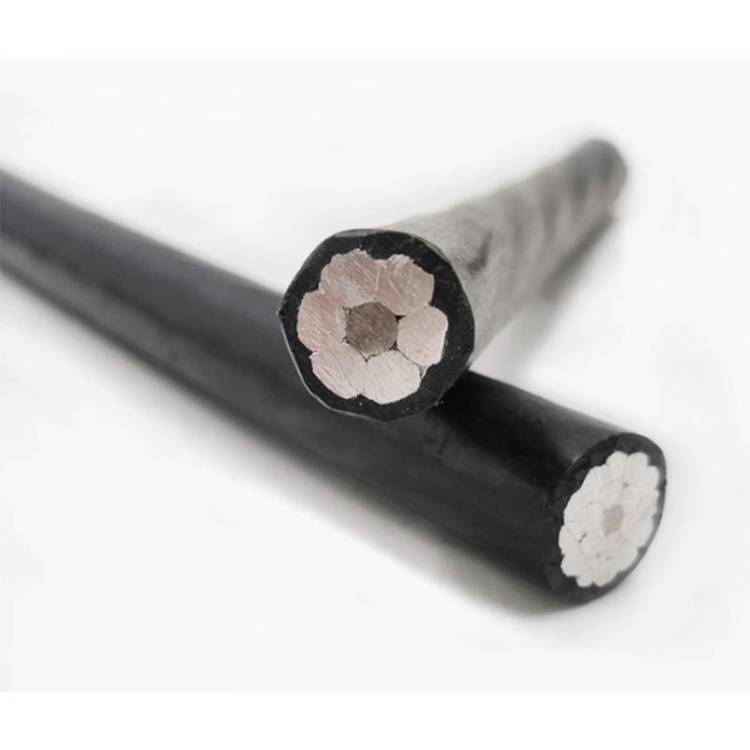

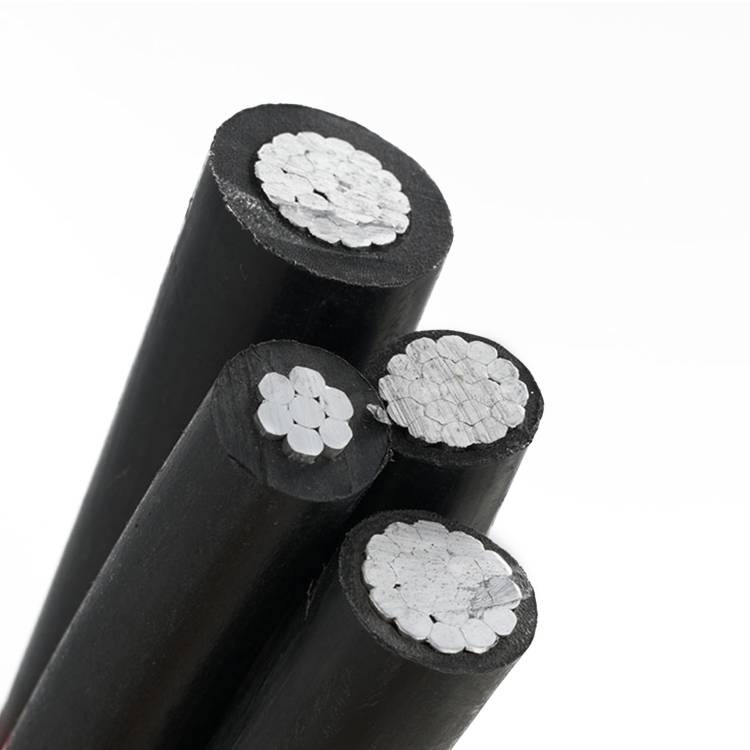

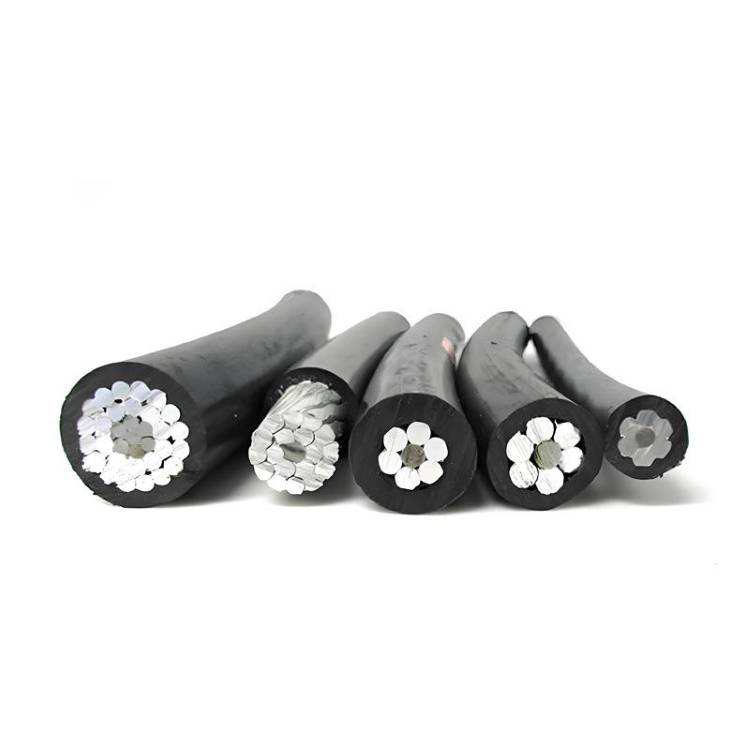

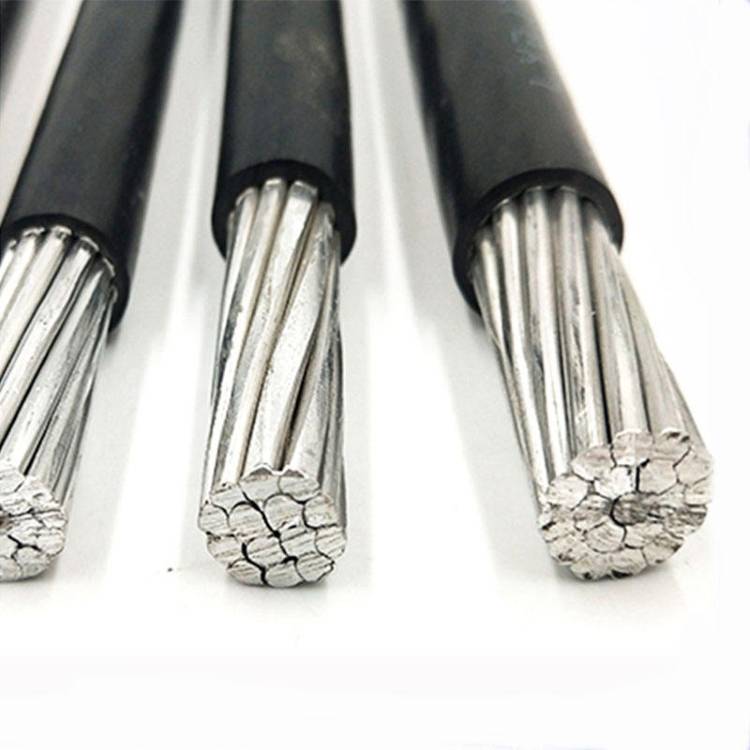

JKLGY full name is XLPE Insulated Aerial Cable with Steel-Cored Aluminum Strand Conductor (ACSR). is also call ABC Cable/Aerial Bundled Cable，and it Compliant with international standards IEC 60502
High Tensile Strength: The steel core provides superior mechanical support for long-span installations.
Weather-proof Insulation: Abc cable with thick XLPE/PE jacket like JHS can protects against UV, ozone, and chemical erosion.
Anti-Short Circuit: Effectively prevents power outages caused by tree contact or flying debris.
High Current Capacity: Optimized aluminum strands ensure efficient power transmission with low line loss,It is widely used in Urban and rural power distribution.
Application
Urban Power Grids: Modernization of city distribution networks where space is limited，Steel core design ensures superior mechanical strength for long-span overhead installation .
Long-span Crossings: Ideal for power lines crossing rivers, valleys, or highways.
Coastal & Harsh Areas: Used in regions with high humidity or chemical pollution (corrosion resistance).
Forestry Zones: Safer than bare wires in preventing forest fires caused by line faults.
Certification
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Supper High Votaltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, WeldingCable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitivepricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
