Overview
| Model NO. | Flat Twin and Earth (T&E)/BVVB | Application | house Wiring、Dry & Damp Interiors、Home Renovation、Construction |
| Voltage | low Voltage Cable | Conductor | Pure Copper |
| Insulation Material | PVC | Sheath Material | PVC |
| Material Shape | Flat | Temperature | 50 °C ~ 100 °C, 0 °C ~ 50 °C |
| Certification | ISO, CCC, CE, RoHS, VDE | Model | Flat Twin and Earth (T&E) |
| Brand | ZhongYI | Voltage Type | 300/500v or 450/750V |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 2-3 |
| Transport Package | Iron Wood Shaft | Specification | 0.75–10 mm² |
| Origin | HEBEI China | Diameter | 18 AWG, 16 AWG, 14 AWG, 12 AWG, 22 AWG, 20 AWG |
| Nominal cross-sectional area (mm²) | Common AWG | Conductor structure (No./single wire diameter mm) | Nominal sheath thickness (mm) | Average outer diameter (mm) | Max DC resistance of conduclor at 20 Ω/km |
Approx.weight kg/km |
| 2×0.75 | 18 | 1/0.96 | 0.9 | 6.3 | 26 | 125 |
| 2×1 | 17 | 1/1.12 | 0.9 | 6.8 | 17.5 | 160 |
| 2×1.5 | 16 | 1/1.36 | 0.9 | 7.8 | 12 | 60.1 |
| 2×2.5 | 14 | 1/1.74 | 1 | 9.1 | 7.26 | 88.4 |
| 2×4 | 12 | 1/2.22 | 1 | 10.5 | 4.5 | 122.5 |
| 2×6 | 10 | 1/2.72 | 1.1 | 11.5 | 3.3 | 820 |
| 2×10 | 8 | 7/1.33 | 1.2 | 14.3 | 1.83 | 175.6 |
Features

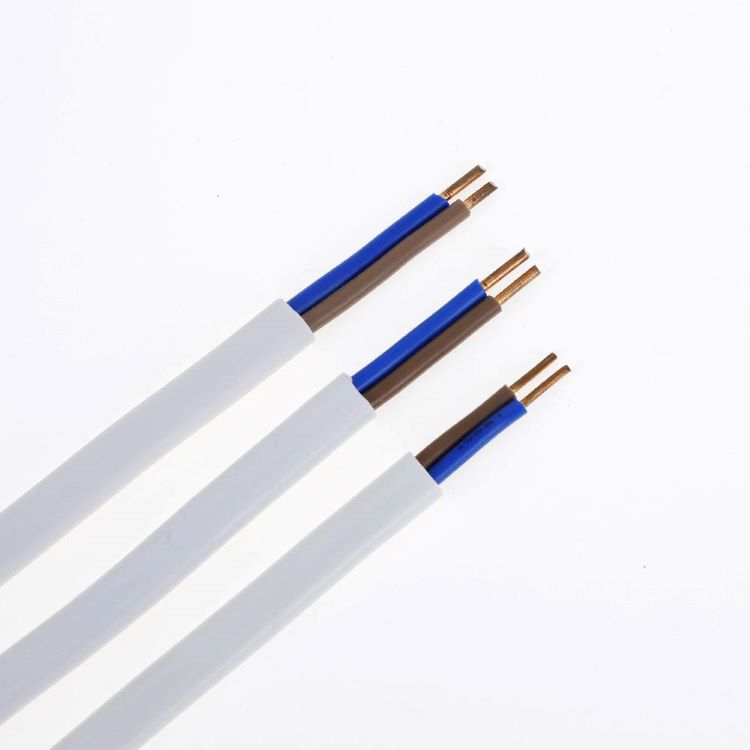

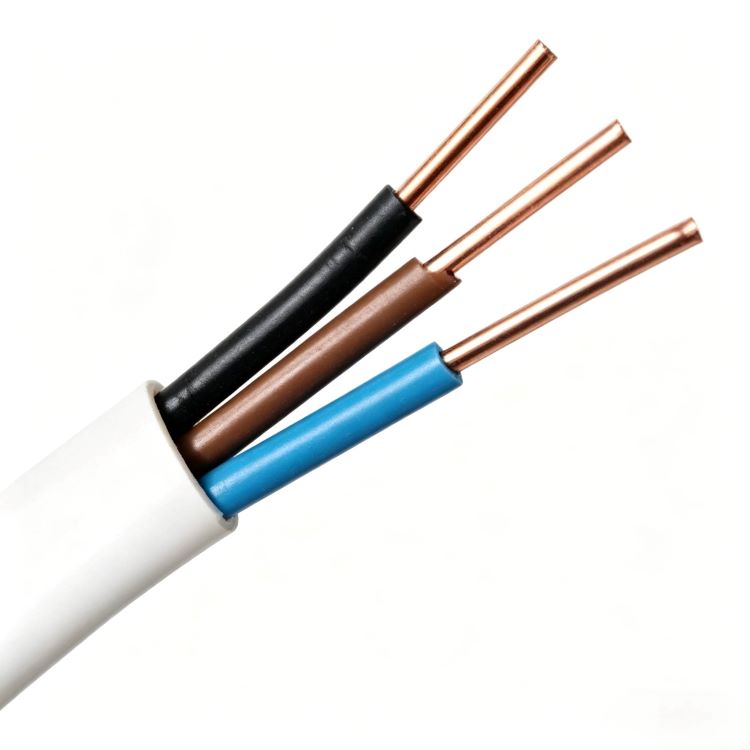

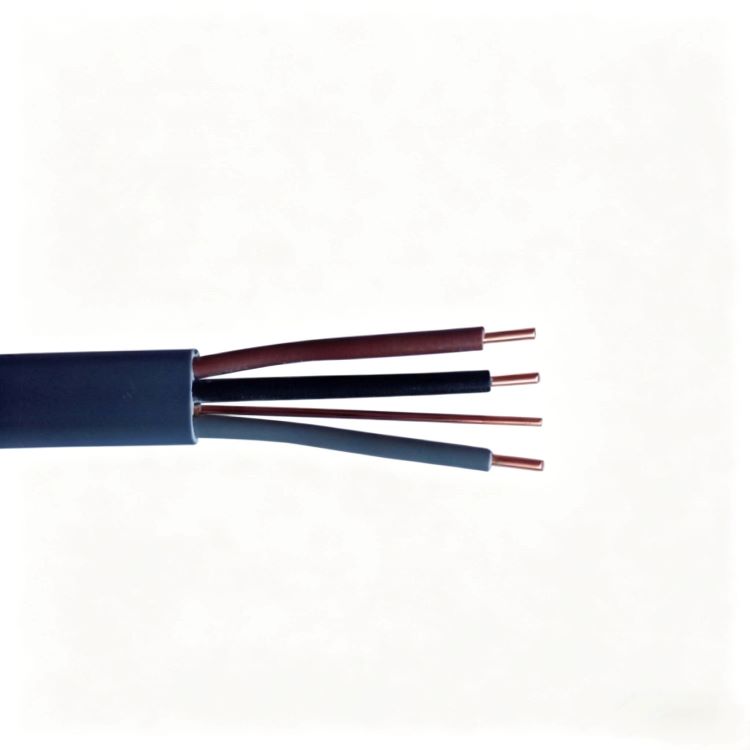

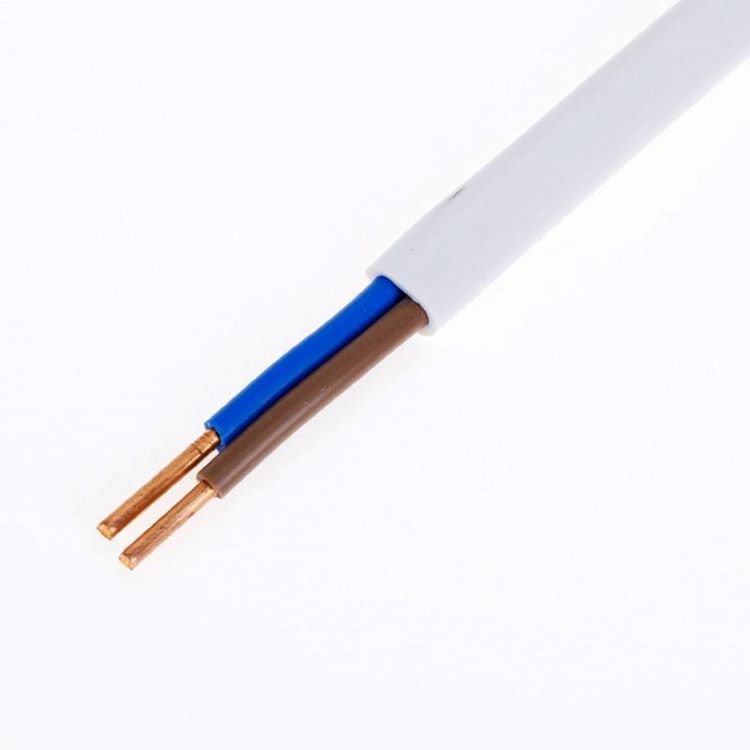

Full name : Copper Conductor PVC Insulated PVC Sheathed Flat Cable, Flat Twin and Earth (T&E)/BVVB is also call NM-B Flat Cable or Romex,and 60227 IEC
Flat Configuration: The parallel layout of conductors makes it thinner and easier to lay flat against walls or under floors.
Double Insulation: Features individual PVC Flat Cable insulation for each core plus an overall protective PVC jacket, ensuring high safety.
Rigid/Solid Conductor: Typically uses solid copper (Class 1), providing stability for fixed wiring.
Space-Saving: Its flat shape allows for installation in narrow gaps or thin surface trunking.
High Durability: Resistant to moisture, aging, and minor mechanical impacts.
Application
House Wiring: The standard FLAT cable for lighting circuits and power socket outlets in modern homes.
Surface-Mounted Installation: Ideal for being pinned directly to walls or ceilings where aesthetic “flatness” is preferred.
Under-Plaster/Conduit: Can be laid under plaster or within cable trunking for a clean, hidden finish.
Home Renovation: Widely used for adding new power points or extending existing electrical lines.
Dry & Damp Interiors: Suitable for indoor environments including kitchens and laundries (when kept away from direct water).
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Supper High Votaltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, WeldingCable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitivepricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
