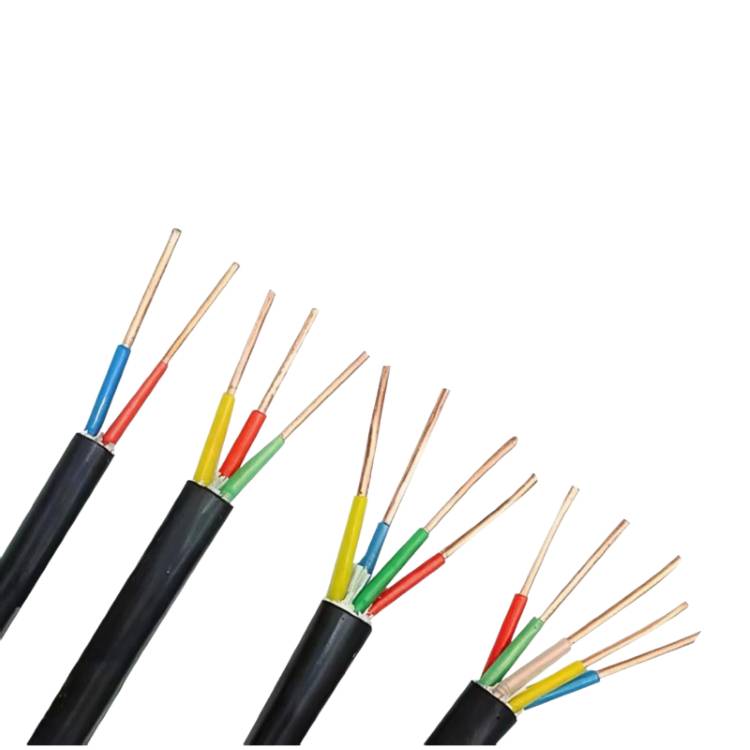

Overview
| Model NO. | kvv H05VV5-F | Application | Building, Cable, Computers, Electric Appliance, Electronics, Heating, Auto |
| Voltage | LOW Voltage | Conductor | Copper |
| Insulation Material | PVC | Jacket | PVC |
| Material Shape | Round | Temperature | -25℃~70℃ |
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Class 1 / Class 2 |
| Brand | ZhongYI | Voltage Type | 450/750 V |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 2-120 |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 0.75-10mm² |
| Origin | HEBEI China | Color | Black |

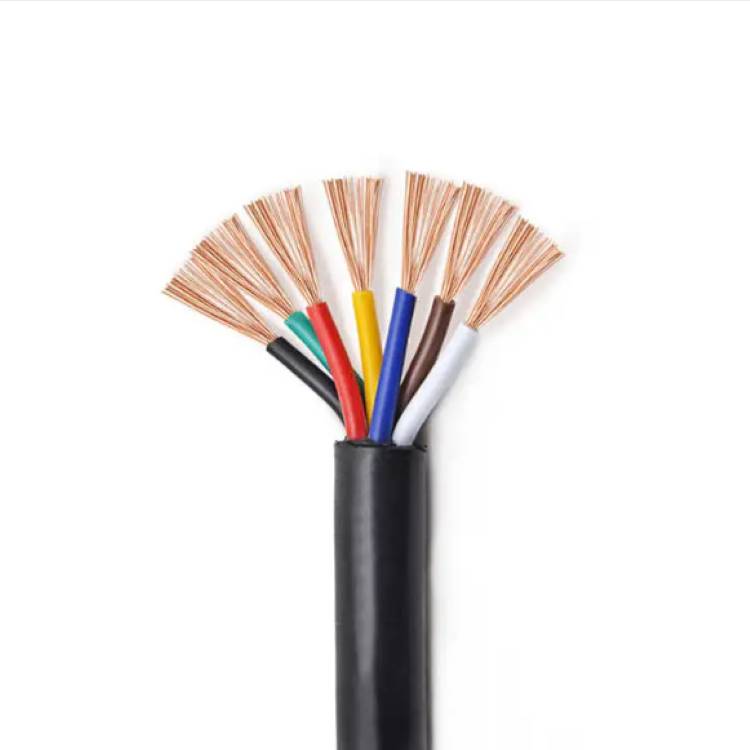

KVV H05VV5-F cable Core Technical Specifications & Data Sheet
| Nominal cross-sectional area (mm²) | Common AWG | Conductor structure (No./single wire diameter mm) | Nominal sheath thickness (mm) | Average outer diameter (mm) | Max DC resistance of conductor at 20 Ω/km | Approx.weight kg/km |
|---|---|---|---|---|---|---|
| 2×1.5 | 18 AWG | 7/0.52 | 1.8 | 8.9 | 12.1 | 95 |
| 2×2.5 | 17 AWG | 7/0.68 | 1.8 | 10.1 | 7.41 | 130 |
| 2×4 | 16 AWG | 7/0.85 | 1.8 | 11.1 | 4.61 | 175 |
| 2×6 | 15 AWG | 7/1.04 | 1.8 | 12.4 | 3.08 | 221 |
| 2×10 | 14 AWG | 7/1.35 | 1.8 | 15.8 | 1.83 | 353 |
Features

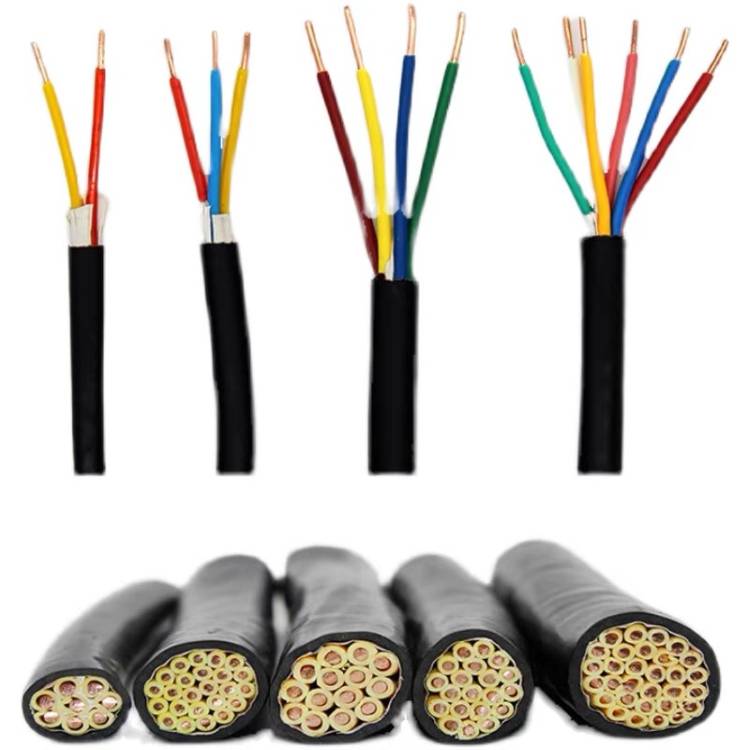

KVV full name is Copper PVC Insulated PVC Sheathed Control Cable, is also call Control Cable or YY Cable

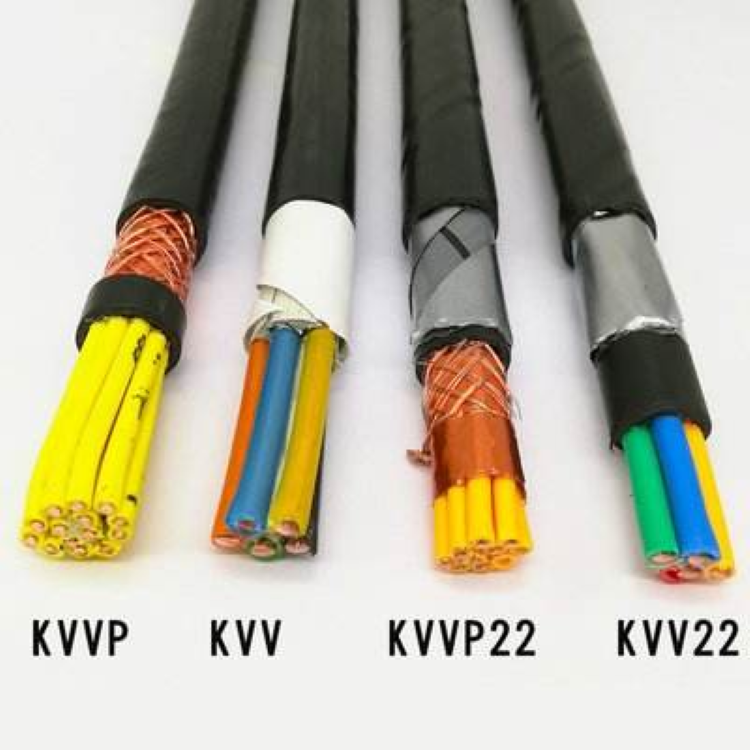

KVV NYCY /KVVP KVVR Series Control Cable Comparison Table
| Cable Code | International / Western Technical Name | Conductor Flexibility | Anti-EMI Shielding | Mechanical Protection | Best Installation Environment | Global Benchmark Model |
|---|---|---|---|---|---|---|
| KVV | Multi-Core Unscreened PVC Control Cable | Class 1 Solid / Class 2 Stranded (Rigid) | None | None | Indoor cable ducts, conduits, and trenches with zero electrical noise. | YY Cable / NYY-J (VDE) |
| KVV22 | Steel Tape Armored (STA) Multi-Core Control Cable | Class 1 Solid / Class 2 Stranded (Rigid) | None | Double Steel Tape Armored (STA) | Direct underground burial with severe crush, stress, or rodent risks. | NYBY Cable (VDE) |
| KVVP | Copper Wire Braid Screened Control Cable | Class 1 Solid / Class 2 Stranded (Rigid) | Overall Copper Wire Braid Shield (≥80%) | None | Substations or factory rooms alongside high-voltage fields requiring EMI shielding. | CY Cable / NYCY (VDE) |
| KVVP22 | Armored & Shielded Multi-Core Control Cable | Class 1 Solid / Class 2 Stranded (Rigid) | Overall Copper Wire Braid Shield (≥80%) | Double Steel Tape Armored (STA) | Direct underground burial pathways that require dual anti-EMI and mechanical armoring. | NYCBY Cable (VDE) |
| KVVR | Flexible Multi-Core Unscreened Control Cable | Class 5 (Flexible Fine Wire Strands) | None | None | Internal cabinet looping, control panels, drag chains, or small-bend wiring paths. | H05VV-F / H07VV-F (Flexible) |
High Conductivity: Pure annealed copper cores ensure stable signal transmission,Suitable for signal transmission and Factory automation .
Superior Insulation: High-grade PVC insulation provides excellent dielectric strength.
Durability: Resistant to oils, moisture, and chemical corrosion,Flame retardant.
Flexibility: Designed for easy installation in fixed laying environments.
Safety Options: Available in flame-retardant (ZR) and low-smoke zero-halogen (LSZH) versions.
Application
Industrial Automation: Wiring for control, monitoring, and protective circuits.
Power Plants: Connecting control systems in substations and distribution centers.
Manufacturing: Signal transmission for assembly lines and CNC machinery.
Building Systems: Essential for elevator controls and HVAC management.
Certification
Factory
FAQ
1. What is the explicit engineering role of KVV cables in industrial automation?
Fixed Control & Signaling Backbone:
Our KVV cable is thoroughly engineered as a multi-core copper conductor power and control wire for stationary installations. Functioning as the central signal transmission backbone, it links critical relay protection circuits, centralized monitoring systems, assembly lines, and CNC machinery control loops. The dual-layer premium PVC matrix ensures stable current delivery and flawless signal tracking in fixed routing pathways free from external mechanical tension.
2. How do the structural behaviors of KVV, KVVR, and KVVP variants differ for grid hazards?
Conductor Mechanics & Shielding Matrix:
The technical choice depends entirely on flexibility needs and electromagnetic interference (EMI) risks. The standard KVV cable features Class 1 or Class 2 rigid copper conductors with zero shielding, optimized for indoor cable ducts with low electrical noise. The KVVR variant implements Class 5 high-strand fine wires to handle dynamic flexing in internal control panels and dynamic guides. The KVVP series upgrades the matrix with a high-density copper wire braid shield (≥80%) to ground severe EMI near high-voltage fields.
3. What does the standard 'KVV' nomenclature represent under global manufacturing codes?
Nomenclature Architectural Breakdown:
Under standard manufacturing codes (fully referencing Chinese National GB/T 9330 and cross-matched with IEC 60502-1 guidelines), each character defines a physical layer: ‘K’ explicitly stands for Control Cable (Kongzhi); the first ‘V’ represents premium Polyvinyl Chloride (PVC) compound engineered for individual core insulation; and the final ‘V’ indicates the rugged, flame-retardant black PVC outer protective jacket. This design makes the cable a direct drop-in equivalent to standard European YY Cable and VDE NYY-J models.
4. Can the PVC insulation system of KVV cables safely manage sudden grid overloads?
Thermal Thresholds & Flame Retardancy:
Yes. Our KVV control wires are extruded using premium-grade, self-extinguishing PVC compounds that provide excellent dielectric strength. It safely supports a maximum continuous conductor operating temperature of 70°C under full load conditions. In the event of temporary emergency overloads or severe short-circuit grid faults, the core structure successfully manages abrupt thermal spikes up to 160°C without mechanical degradation, meeting rigid IEC 60332-1 flame retardant safety protocols.
5. What wholesale core densities and logistics packaging options does ZHONGYI CABLE guarantee?
High-Density Configurations & Rigid Reel Logistics:
As an established direct B2B cable manufacturer, we supply KVV unshieled control wires in high-density multi-core configurations spanning from 2 cores up to 120 cores, covering critical cross-sections from 0.75 mm² to 10 mm². To protect the supple outer jacket and preserve core alignment geometry during maritime sea freight transit, bulk wholesale orders are wound securely on heavy-duty wooden drums or packed in cardboard boxes, backed by official Type Test Reports.
