Overview
| Model NO. | YJLLW03，HV XLPE Aluminum Power Cable | Application | Urban High-Voltage Grids，Coastal & Damp Environments，Long-Distance Transmission |
| Voltage | High Voltage Cable | Conductor | Aluminum |
| Insulation Material | XLPE ,PE | Jacket | PVC,PE |
| Material Shape | Round | Temperature | -20°C~+90°C |
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Stranded |
| Brand | ZhongYI | Voltage Type | 48/66KV , 64/110KV |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | Single |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 240-1600mm² |
| Origin | HEBEI China | Color | Black |
| Nominal cross section mm² | Diameter of Conductor Copper mm | Semiconductor Conductive Tape （T/ D）mm | conductor shielding （T/ D）mm |
Insulated （T/ D）mm | insulation shielding （T/ D）mm |
Semiconductor Water-Swelling Buffer Layer （ D）mm |
Wrinkled Aluminum Sheath （ D）mm |
PVC/XLPE sheath （D）mm |
Ref. Weight kg/km |
| 240 | 17.6 | 17.96 | 1.2/20.36 | 19/19.1 | 1/60.56 | 66.56 | 77.56 | 86.66 | 6035.65 |
| 300 | 19.7 | 20.06 | 1.2/22.46 | 18.5/18.6 | 1/61.66 | 67.66 | 78.66 | 87.76 | 6280.20 |
| 400 | 22.3 | 22.66 | 1.2/25.06 | 17.5/17.6 | 1/62.26 | 68.26 | 79.26 | 88.36 | 6504.32 |
| 500 | 26.5 | 26.86 | 1.2/29.26 | 17/17.1 | 1/65.46 | 71.46 | 82.46 | 91.56 | 7059.13 |
| 630 | 30 | 30.36 | 1.2/32.76 | 16.5/16.6 | 1/67.96 | 73.96 | 84.96 | 95.06 | 7816.41 |
| 800 | 34.1 | 34.46 | 1.2/36.86 | 16/16.1 | 1/71.06 | 77.06 | 89.06 | 99.16 | 8594.30 |
| 1000 | 39.8 | 41.4 | 1.5/44.4 | 16/16.1 | 1.2/79 | 85 | 97.6 | 107.7 | 10345.62 |
| 1200 | 42.8 | 44.4 | 1.5/47.4 | 16/16.1 | 1.2/82 | 88 | 100.6 | 111.7 | 11328.17 |
| 1400 | 45.8 | 47.4 | 1.5/50.4 | 16/16.1 | 1.2/85 | 91 | 103.6 | 114.7 | 12177.29 |
| 1600 | 48.8 | 50.4 | 1.5/53.4 | 16/16.1 | 1.2/88 | 94 | 106.6 | 117.7 | 13026.42 |
Features

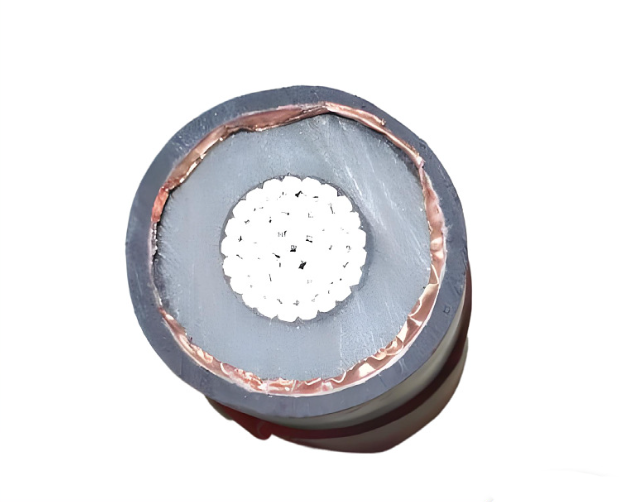

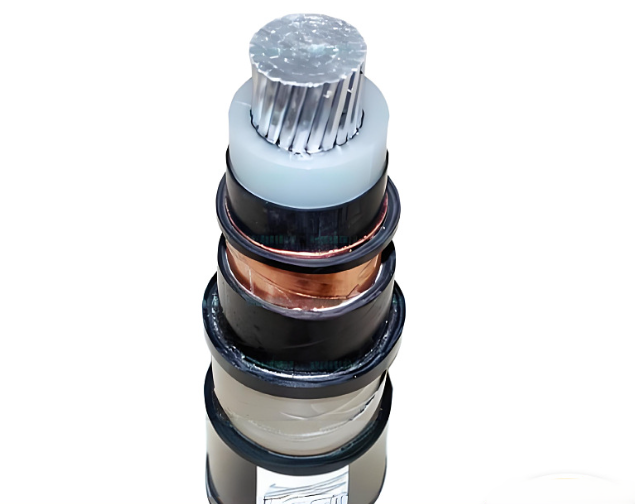

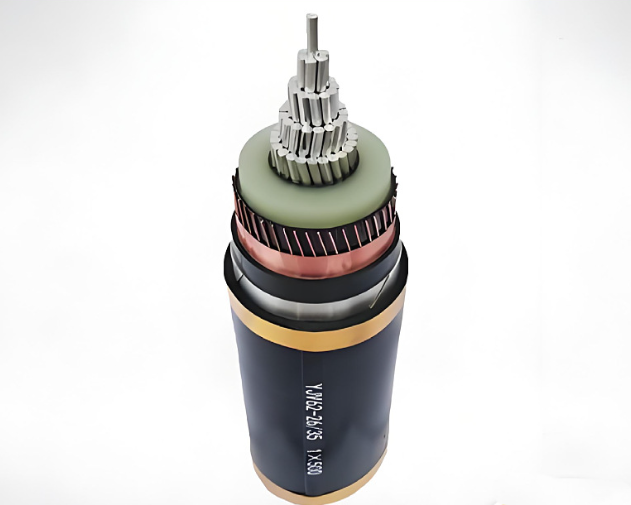

YJLLW03 HV XLPE Aluminum Power Cable，110kV/220kV XLPE Insulated with Corrugated Aluminum Sheath and PVE Jacket.
| Cable Code | International / Western Technical Name | Conductor Material | Metallic Sheath Type | Outer Jacket Material | Best Installation Environment | Core Functional Feature |
|---|---|---|---|---|---|---|
| YJLW03 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Jacket Cable | Pure Copper (Cu) | Corrugated Aluminum | PE (Polyethylene) | Direct underground burial, severe marshlands, or highly saline soils. | Maximum conductivity + Premium water-blocking + Superior chemical resistance. |
| YJLLW03 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Jacket Aluminum Cable | Aluminum (Al) | Corrugated Aluminum | PE (Polyethylene) | Long-distance cross-country underground grids with tight budget constraints. | Highly cost-effective + Lightweight structure + Exceptional soil corrosion resistance. |
| YJLW02 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Jacket Cable | Pure Copper (Cu) | Corrugated Aluminum | PVC (Polyvinyl Chloride) | Indoor cable tunnels, vertical shafts, power stations, or municipal pipeline ducts. | Maximum load capacity + Premium flame retardancy (Self-extinguishing in tunnels). |
| YJLLW02 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Jacket Aluminum Cable | Aluminum (Al) | Corrugated Aluminum | PVC (Polyvinyl Chloride) | Substation infrastructure cabling channels demanding high fire safety at a lower cost. | Budget-friendly engineering alternative + Light tensile load + Excellent flame retardancy. |
Superior Sealing & 100% Moisture Barrier
The corrugated aluminum sheath (W) acts as a seamless metal layer with exceptional sealing properties. It not only achieves complete radial water blocking but also effectively prevent sex ternal moisture from penetrating the insulation, ensuring the long-term stable operation of high-voltage power grids.
Robust Mechanical Protection
Compared to lead-sheathed cables, the aluminum sheath is lighter in weight and higher in strength. Its unique corrugated structure enhances the cable’s crush resistance while maintaining excellent bending flexibility, making it durable even in complex terrains.
Advanced Chemical Resistance & Anti-Cracking：
The PE outer sheath (YJLLW03) offers significant advantages over standard PVC (YJLLW02) jackets
Low Water Absorption: Ideal for humid, rainy, or coastal environments.
Environmental Stress Crack Resistance (ESCR): Prevents physical cracks in harsh soil conditions.
Low-Temperature Performance: Remains tough and resilient in cold climates without becoming brittle
High Current Capacity & Heat Resistance
The XLPE insulation (YJ) allows the cable to operate continuously at a rated temperature of 90°C (and up to 250°C during a short circuit). This provides superior transmission efficiency and a longer service life compared to traditional insulation materials.
Application
Main Transmission Lines: Ideal for high-capacity underground power transmission in densely populated urban areas where overhead lines are not feasible.
Substation Connections: YJLLW03 Used as the primary link between high-voltage substations and the regional power grid
High Humidity & Coastal Areas: Due to its PE outer sheath (03) and corrugated aluminum barrier.
Direct Burial & Tunnels: Designed for long-term installation in underground tunnels, cable trenches, or direct burial in soil with high mechanical stress
Power Plants: Reliable energy out-feed for thermal, hydro, and large-scale renewable energy plants.
Heavy Industrial Hubs: Supplies stable high-voltage power to steel mills, chemical plants, and mining operations that require uninterrupted energy flow.
Long-Distance Transmission: YJLLW03 Suitable for high-voltage links between substations where high mechanical reliability is required.
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Super High Voltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, Welding Cable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitive pricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
