Overview
| Model NO. | YJLLW02, HV PVC Sheath Aluminum Power Cable | Application | Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Transformer |
| Voltage | High Voltage | Current | AC Cable |
| Insulation Material | XLPE | Sheath Material | PVC |
| Material Shape | round | Core Material | Aluminum |
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Stranded |
| Brand | ZhongYI | Voltage Type | 64/110kv |
| Company Name | ZHONGYI Cable Co., Ltd | Core | Single |
| Transport Package | Iron Wood Shaft | Specification | 240-1600mm² |
| Origin | China | Color | Black |
| Nominal cross section mm² | Diameter of Conductor Copper mm | Semiconductor Conductive Tape （T/ D）mm | conductor shielding （T/ D）mm |
Insulated （T/ D）mm | insulation shielding （T/ D）mm |
Semiconductor Water-Swelling Buffer Layer （ D）mm |
Wrinkled Aluminum Sheath （ D）mm |
PVC/XLPE sheath （D）mm |
Ref. Weight kg/km |
| 240 | 17.6 | 17.96 | 1.2/20.36 | 19/19.1 | 1/60.56 | 66.56 | 77.56 | 86.66 | 6035.65 |
| 300 | 19.7 | 20.06 | 1.2/22.46 | 18.5/18.6 | 1/61.66 | 67.66 | 78.66 | 87.76 | 6280.20 |
| 400 | 22.3 | 22.66 | 1.2/25.06 | 17.5/17.6 | 1/62.26 | 68.26 | 79.26 | 88.36 | 6504.32 |
| 500 | 26.5 | 26.86 | 1.2/29.26 | 17/17.1 | 1/65.46 | 71.46 | 82.46 | 91.56 | 7059.13 |
| 630 | 30 | 30.36 | 1.2/32.76 | 16.5/16.6 | 1/67.96 | 73.96 | 84.96 | 95.06 | 7816.41 |
| 800 | 34.1 | 34.46 | 1.2/36.86 | 16/16.1 | 1/71.06 | 77.06 | 89.06 | 99.16 | 8594.30 |
| 1000 | 39.8 | 41.4 | 1.5/44.4 | 16/16.1 | 1.2/79 | 85 | 97.6 | 107.7 | 10345.62 |
| 1200 | 42.8 | 44.4 | 1.5/47.4 | 16/16.1 | 1.2/82 | 88 | 100.6 | 111.7 | 11328.17 |
| 1400 | 45.8 | 47.4 | 1.5/50.4 | 16/16.1 | 1.2/85 | 91 | 103.6 | 114.7 | 12177.29 |
| 1600 | 48.8 | 50.4 | 1.5/53.4 | 16/16.1 | 1.2/88 | 94 | 106.6 | 117.7 | 13026.42 |
Features

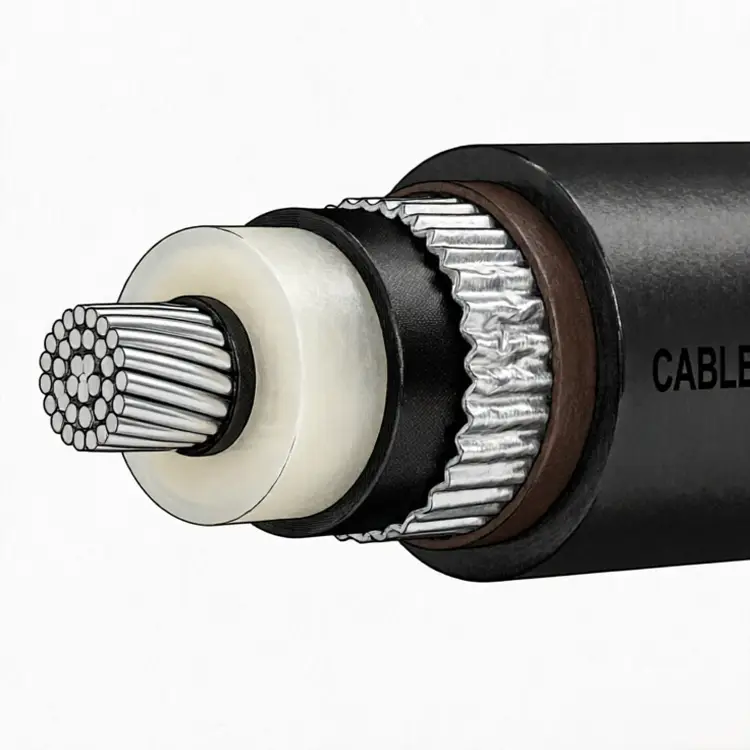

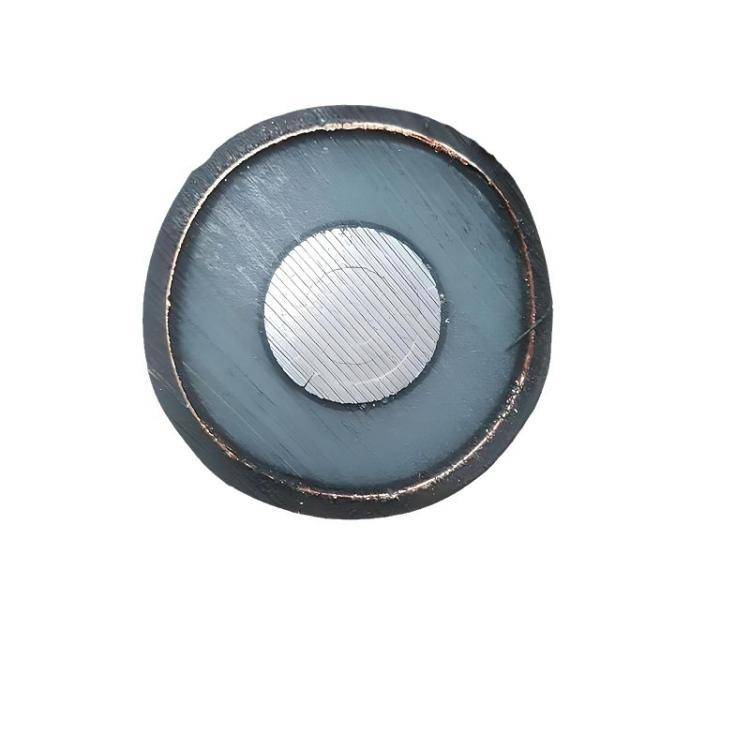

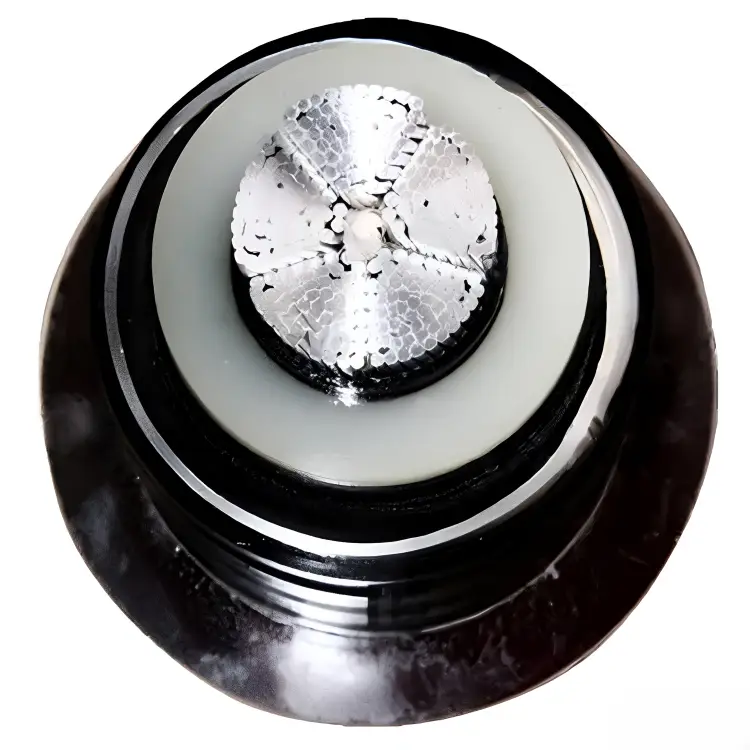

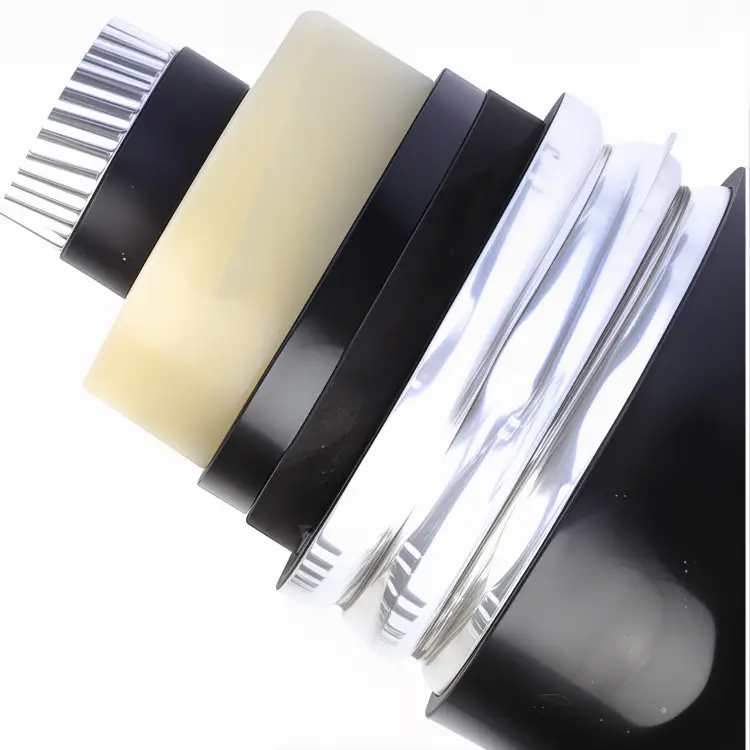

YJLLW02 calls Aluminum conductor, XLPE insulation, corrugated aluminum sheath, PVC Sheathed, HV Cable ,Power cable.
| Cable Code | International / Western Technical Name | Conductor Material | Metallic Sheath Type | Outer Jacket Material | Best Installation Environment | Core Functional Feature |
|---|---|---|---|---|---|---|
| YJLW03 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Jacket Cable | Pure Copper (Cu) | Corrugated Aluminum | PE (Polyethylene) | Direct underground burial, severe marshlands, or highly saline soils. | Maximum conductivity + Premium water-blocking + Superior chemical resistance. |
| YJLLW03 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Jacket Aluminum Cable | Aluminum (Al) | Corrugated Aluminum | PE (Polyethylene) | Long-distance cross-country underground grids with tight budget constraints. | Highly cost-effective + Lightweight structure + Exceptional soil corrosion resistance. |
| YJLW02 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Jacket Cable | Pure Copper (Cu) | Corrugated Aluminum | PVC (Polyvinyl Chloride) | Indoor cable tunnels, vertical shafts, power stations, or municipal pipeline ducts. | Maximum load capacity + Premium flame retardancy (Self-extinguishing in tunnels). |
| YJLLW02 | HV XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Jacket Aluminum Cable | Aluminum (Al) | Corrugated Aluminum | PVC (Polyvinyl Chloride) | Substation infrastructure cabling channels demanding high fire safety at a lower cost. | Budget-friendly engineering alternative + Light tensile load + Excellent flame retardancy. |
1. Reliable Waterproofing & 100% Moisture Barrier
The Corrugated Aluminum Sheath (W) provides a seamless, robust metal barrier. This design ensures 100% radial water blocking, preventing any moisture from reaching the XLPE insulation, which is critical for the long-term reliability of high-voltage transmission lines.
2. Excellent Flame Retardancy (PVC Advantage)
The PVC Outer Sheath (02) is naturally flame-retardant and self-extinguishing. This makes YJLLW02 the preferred choice for installations in cable tunnels, shafts, and indoor power stations where fire safety is a top priority.
3. Superior Mechanical Protection & Flexibility
The corrugated aluminum layer offers much higher mechanical strength than lead-sheathed cables while remaining lightweight. Its “bellows-like” structure provides a perfect balance between crush resistance and bending flexibility, simplifying the installation process in complex terrains.
4. High Temperature & Current Capacity
Equipped with XLPE insulation, the cable supports a continuous operating temperature of 90°C and can withstand short-circuit temperatures up to 250°C. This ensures high power transmission efficiency and a service life exceeding 30 years.
5. Biological Protection
The metallic sheath acts as a natural physical shield against termites and rodents, ensuring the cable core remains undamaged in underground environments.
