Overview
| Model NO. | XLPE PVC Sheathed HV Cable | Application | Power Stations,Industrial Plants & Yards,residential expansion loops,Construction Power Station Wiring |
| Voltage | High Voltage | Conductor | Copper |
| Insulation Material | XLPE | Jacket | PVC |
| Material Shape | Round | Temperature |
-15°C~90°C
|
| Certification | ISO, CCC, CE, RoHS, VDE | Conductor Type | Class 2 |
| Brand | ZhongYI | Voltage Type | 64/110KV |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 1 |
| Transport Package | Plastic Packaging and Cardboard Boxes | Specification | 240-1600mm² |
| Origin | HEBEI China | Color | black |
XLPE PVC Sheathed HV Cable Core Technical Specifications & Data Sheet
| Nominal cross section mm² | Diameter of Conductor Copper mm | Semiconductor Conductive Tape （T/ D）mm | conductor shielding （T/ D）mm |
Insulated （T/ D）mm | insulation shielding （T/ D）mm |
Semiconductor Water-Swelling Buffer Layer （ D）mm |
Wrinkled Aluminum Sheath （ D）mm |
PVC/XLPE sheath （D）mm |
Ref. Weight kg/km |
| 240 | 18.4 | 18.76 | 1.2/21.16 | 19/59.36 | 1/61.36 | 67.36 | 78.36 | 87.46 | 7555.00 |
| 300 | 20.4 | 20.76 | 1.2/23.16 | 18.5/60.36 | 1/62.36 | 68.36 | 79.36 | 88.46 | 8161.85 |
| 400 | 23.3 | 23.66 | 1.2/26.06 | 17.5/61.26 | 1/63.26 | 69.26 | 80.26 | 89.36 | 8958.15 |
| 500 | 26.5 | 26.86 | 1.2/29.26 | 17/63.46 | 1/65.46 | 71.46 | 82.46 | 91.56 | 10110.63 |
| 630 | 30 | 30.36 | 1.2/32.76 | 16.5/65.96 | 1/67.96 | 73.96 | 84.96 | 96.06 | 11956.99 |
| 800 | 34.1 | 34.46 | 1.2/36.86 | 16/69.06 | 1.2/71.46 | 77.46 | 89.46 | 99.56 | 13688.23 |
| 1000 | 39.8 | 41.4 | 1.5/44.4 | 16/76.6 | 1.2/79 | 85 | 97.6 | 107.7 | 16639.47 |
| 1200 | 42.8 | 44.4 | 1.5/47.4 | 16/79.6 | 1.2/82 | 88 | 100.6 | 111.7 | 18930.37 |
| 1400 | 45.8 | 47.4 | 1.5/50.4 | 16/82.6 | 1.2/85 | 91 | 103.6 | 114.7 | 20839.09 |
| 1600 | 48.8 | 50.4 | 1.5/53.4 | 16/85.6 | 1.2/88 | 94 | 106.6 | 117.7 | 22925.62 |
Features

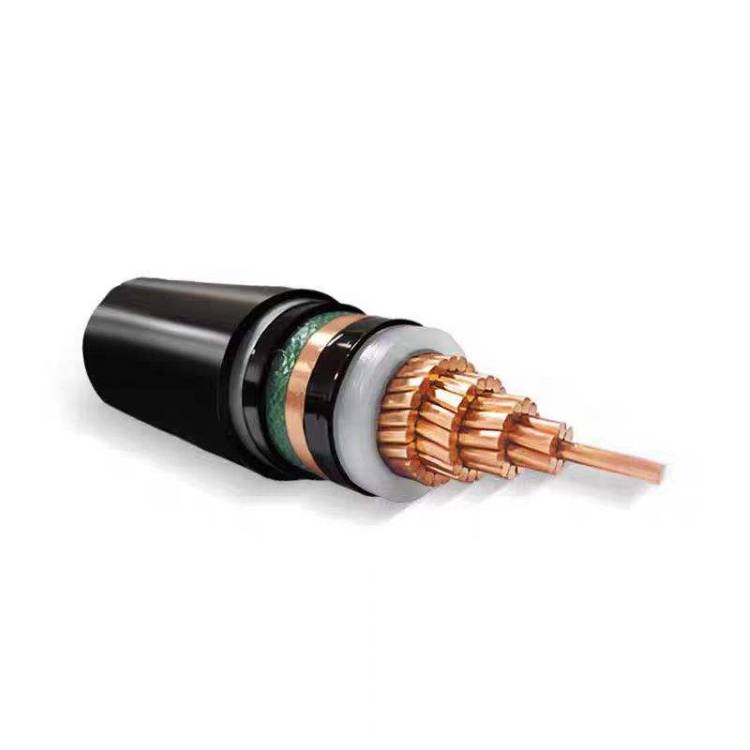

XLPE PVC Sheathed HV Cable always calls Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Sheathed High Voltage Power Cable.
| Chinese Standard Code | International/English Description (IEC Equivalent) | Short Professional Term |
|---|---|---|
| YJLW02 | Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Sheathed Power Cable | XLPE PVC Sheathed HV Cable |
| YJLW03 | Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Sheathed Power Cable | XLPE PE Sheathed HV Cable |
| YJLW03 110kV | 110kV Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Sheathed High Voltage Power Cable (IEC 60840) | 110kV XLPE Aluminum Sheathed Cable |
XLPE PVC Sheathed HV Cable vs 110KV XLPE Aluminum Sheathed Cable Comparison Table
| Technical Feature | XLPE PVC Sheathed HV Cable / YJLW02 Cable (PVC Outer Sheath) | XLPE Aluminum Sheathed Cable / YJLW03 Cable (PE Outer Sheath) |
|---|---|---|
| Full Name | Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PVC Outer Sheathed High Voltage Power Cable | Copper Conductor, XLPE Insulated, Corrugated Aluminum Sheathed, PE Outer Sheathed High Voltage Power Cable |
| Conductor Material | Class 2 Compacted Stranded Copper (Excellent electrical conductivity & high current carrying capacity) | |
| Insulation & Shield | Cross-linked Polyethylene (XLPE) Insulation with 100% impermeable Corrugated Aluminum Sheath | |
| Outer Jacket Material | Polyvinyl Chloride (PVC) — Ideal for chemical resistance and standard layouts | Polyethylene (PE) — Harder, higher density, and provides better protection against structural wear |
| Direct Burial Ability | Not recommended for harsh direct burial due to standard moisture permeability over long-term water contact | Approved for Direct Burial (Superior waterproof performance, low water permeability, and high crush tolerance) |
| Flame Retardancy | Enhanced Safety (Inherent flame retardant properties, suitable for indoor cable tunnels and trenches) | Low flame retardancy (Requires additional fire-resistant coating or special additives if used indoors) |
| Operating Temperature | -15°C to +90°C (Standard environmental thermal margin) | -40°C to +90°C (Excellent low-temperature flexibility and thermal stress resistance) |
High Current Carrying Capacity: Conductor maximum operating temperature is 90°C, and up to 250°C during a short circuit (≤ 5s).
Excellent Radial Moisture & Water Blocking: The corrugated aluminum sheath provides a 100% impermeable barrier against water ingress.
Robust Mechanical Protection: Corrugated aluminum armor offers superior mechanical strength against external crushed soil or stress
Low Electrical Stress: Equipped with extruded semi-conducting screens to minimize electrical stress configuration.
Anti-corrosion & Flame Retardant Options: The standard PVC outer sheath delivers strong corrosion resistance against chemical substances.
Application
Urban Power Grid Upgrades: Underground power cable trench and tunnel layout.
Power Stations & Substations: Connecting high-voltage transformers and power grids.
Industrial Plants:Heavy chemical industry zones and steel plants requiring mega-watt level energy distribution.
Certification
Factory
FAQ
1. What are the key technical specifications of your 110kV XLPE insulated cable?
Core Technical Standards:
Our YJLW02 / YJLW03 series high voltage cable is engineered for 110kV grid transmission. It features a high-purity copper or aluminum conductor, insulated with triple-extruded, super-clean Cross-linked Polyethylene (XLPE). Operating at a continuous conductor temperature of 90°C (and up to 250°C during short-circuit conditions), it fully complies with IEC 60840 and GB/T 11017 international standards, guaranteeing stable, high-capacity power transmission.
2. Why does this 110kV high voltage cable utilize a corrugated aluminum sheath?
Mechanical & Waterproof Protection:
High-voltage underground systems demand absolute protection. Our cable employs a continuously welded, corrugated aluminum sheath (indicated by ‘W’ in nomenclature). This design provides a 100% radial moisture barrier to prevent water treeing in the XLPE layer, exhibits excellent short-circuit current carrying capacity, and offers superior mechanical protection against soil pressure while maintaining optimal bending flexibility during installation.
3. How does ZHONGYI CABLE guarantee zero defects in 110kV XLPE insulation?
Advanced Quality Assurance & Partial Discharge Testing:
To prevent electrical breakdown, our 110kV cables are manufactured using a world-class VCV (Vertical Continuous Vulcanization) triple-extrusion line in a Class 100 cleanroom. Every single drum undergoes mandatory routine factory testing, including high-voltage AC resonance tests and Partial Discharge (PD) testing. We strictly guarantee a PD level of ≤ 5 pC (pico-coulombs), far exceeding standard safety requirements.
4. Can this high-voltage cable be customized with specialized outer jackets?
B2B Customization & Environmental Adaptability:
Yes. While our standard YJLW02 features a heavy-duty PVC outer sheath, we offer custom modifications to suit diverse burial environments. For superior abrasion resistance and low-temperature durability, we provide HDPE (YJLW03) jackets. Additionally, we can integrate a conductive graphite layer for post-installation sheath testing, anti-termite/anti-rodent additives, and Flame Retardant (FR-PVC) formulas for tunnel installations.
5. What are the standard packing lengths and logistics requirements for 110kV cables?
Heavy-Duty Engineering Logistics:
Due to the significant weight and bending radius of 110kV cables, they are packed on specialized, extra-large steel drums, with delivery lengths calculated precisely based on your site’s section-by-section trench layout to minimize intermediate joints. Every shipment includes Type Test Reports, routine test certificates, and specialized transport brackets. Our technical team also provides guidance on high-voltage cable terminations, joints, and cross-bonding grounding design.
