Overview
| Model NO. | NYM/BVV | Application | Surface-Mounted、Power Distribution Units WiringResidential &Commercial Building |
| Voltage | low Voltage Cable | Conductor | Pure Copper |
| Insulation Material | PVC | Sheath Material | PVC |
| Material Shape | round | Diameter | 1 AWG, 2 AWG, 4 AWG, 6 AWG, 7AWG |
| Certification | ISO, CCC, CE, RoHS, VDE | Temperature | 0 °C ~ 70 °C |
| Brand | ZhongYI | Voltage Type | 450/750v |
| Company Name | ZHONGYI Cable Co., Ltd | CORE | 2,3,4,5 |
| Transport Package | Iron Wood Shaft | Specification | 1.3 mm, 1.7 mm, 2.1 mm, 2.5 mm, 1.8mm |
| Origin | HEBEI China | Conductor Type | Solid |
| Nominal cross-sectional area (mm²) | Common AWG | Conductor structure (No./single wire diameter mm) | Nominal sheath thickness (mm) | Average outer diameter (mm) | Max DC resistance of conduclor at 20 Ω/km |
Approx.weight kg/km |
| 1 x 1.0 | 18 | 0.8 | 1.8 | 6.9 | 19.5 | 60 |
| 1 x 1.5 | 16 | 0.8 | 1.8 | 7.2 | 13.3 | 70 |
| 1 x 2.5 | 14 | 0.8 | 1.8 | 7.8 | 7.98 | 88 |
| 1 x 4.0 | 12 | 1 | 1.8 | 8.6 | 7.98 | 88 |
Features

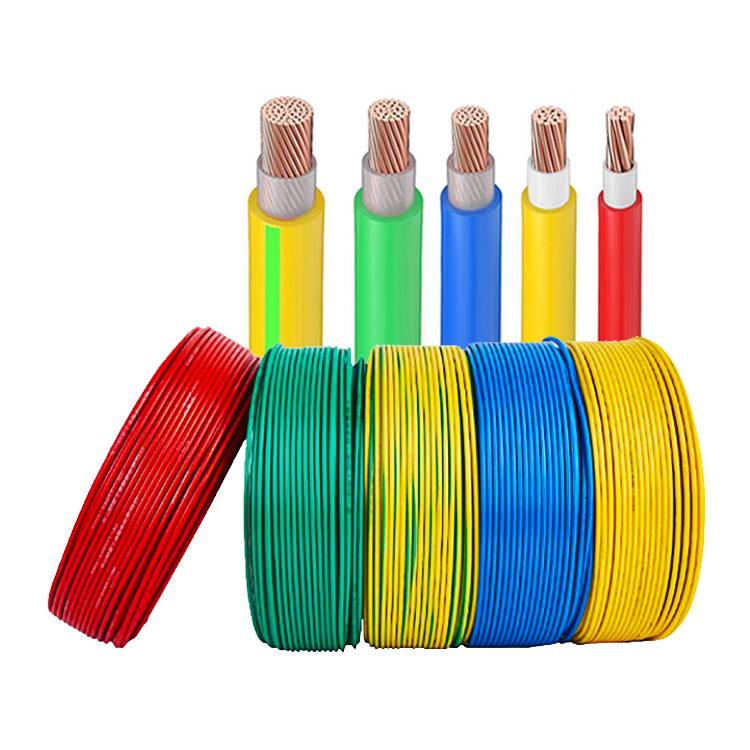

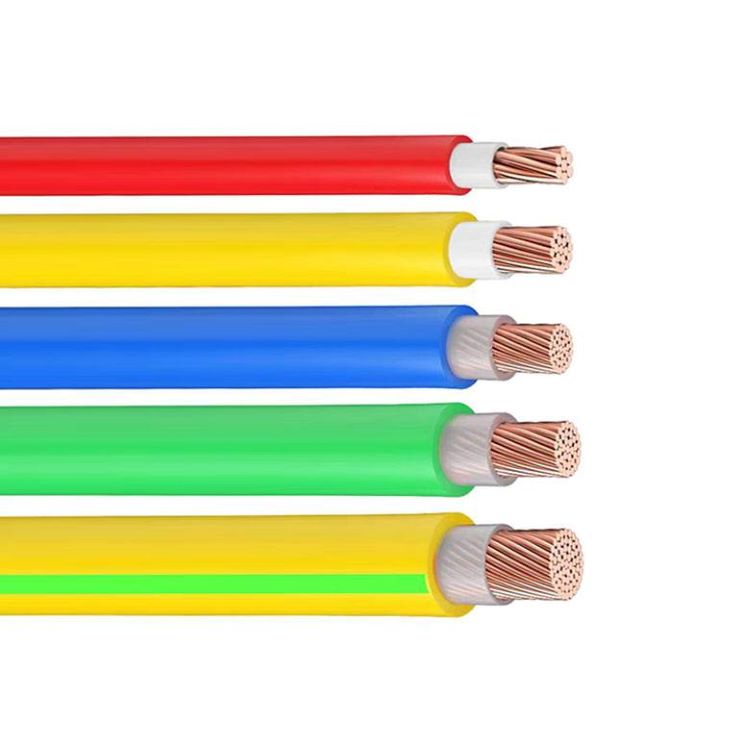

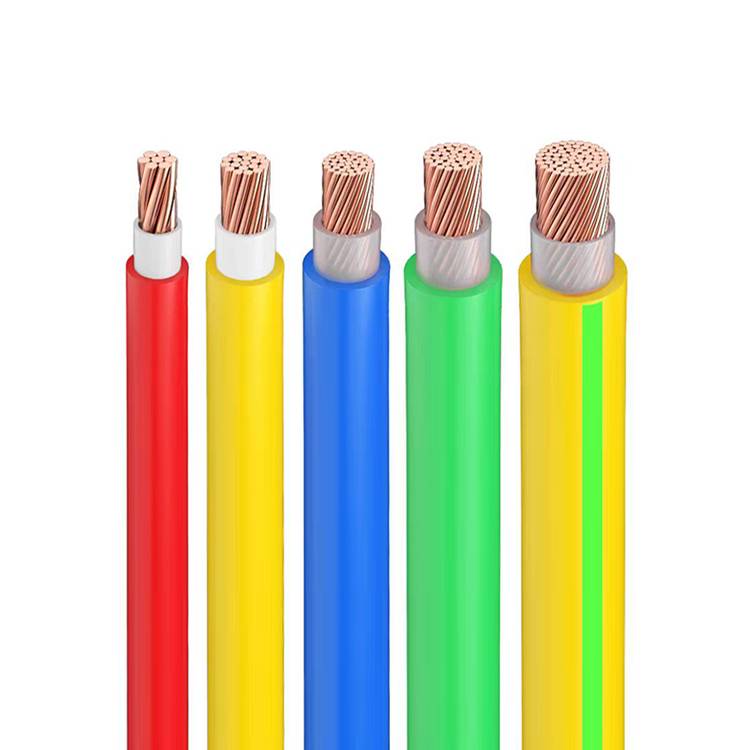

Full Name: PVC Insulated and PVC Sheathed Cable ,BVV is a standard building wire widely used for fixed installations. In international standards (IEC), it is categorized as 60227 IEC 10
Dual-Layer Protection:Features both primary insulation and an outer protective sheath.
Solid Conductor:Typically uses Class 1 (Solid) or Class 2 (Stranded) copper
Flame Retardancy:Usually manufactured with PVC (Polyvinyl Chloride) that meets standard fire safety ratings.
Application
Surface-Mounted Wiring (Exposed):The preferred choice for wiring directly onto walls or ceilings without conduits, thanks to its heavy-duty outer sheath.
Residential & Commercial Building:Used for fixed power supply lines, socket outlets, and lighting circuits.
Moisture-Prone Environments:Suitable for damp areas like basements or utility rooms where single-insulated wires (like BV) would be insufficient.
Power Distribution Units:Ideal for internal wiring in control boxes and power panels where a rigid, protected connection is required.
Temporary Power Supply:Often used for temporary construction sites or event power due to its durability.
Certification
Factory
FAQ
1. Who are we?
ZHONGYI CABLE is a leading B2B cable manufacturer and global supplier headquartered in Xingtai City, Hebei Province, China. With over 30 years of industrial expertise, we specialize in providing high-quality electrical wire and power cable solutions to professional partners worldwide.
2. What certificates and standards do you have?
Our products meet IEC/GB standards with:
ISO 9001/ ISO 14001/ ISO 45001
Engineering project bidding qualifications
Type test reports & factory test certificates
Support for COC/PVOC/CB and other country-specific documents dispatch.
3. What can you buy from us?
Supper High Votaltage up to 110kv, High Voltage Cable, Low Voltage Cable, Electrical cables, Control Cable, H07 Series Wire and H05 series cable, Hard & Flexible Cable, WeldingCable, Mining Cable, Solar Cable, Control Cable, Special cable and the related product.
4. What is your standard lead time?
Delivery time depends on the order quantity and stock availability: In-stock items: 2–3 days; Mass production/custom orders: 7–25 days.
5. Why should you buy from us?
Direct Factory Advantage: By purchasing directly from our facility. you eliminate middlemen, ensuring the most competitivepricing and direct communication with our technical team.
Fast Shipment: Normal size cable we have fine warehouses, Small MOQ order for stock product can be shipped next day after confirming the order.
Warranty and after-sales service: 2 years warranty, 24-hour technical support & installation guidance, Defect replacement as per agreement
Technical support: We provide complete data sheets, test reports, specifications, the online video technican service and the On-site guidance from the technical team.
One -Stop service: We provide cable products and offer a complete one-stop service for cable installation and construction.
